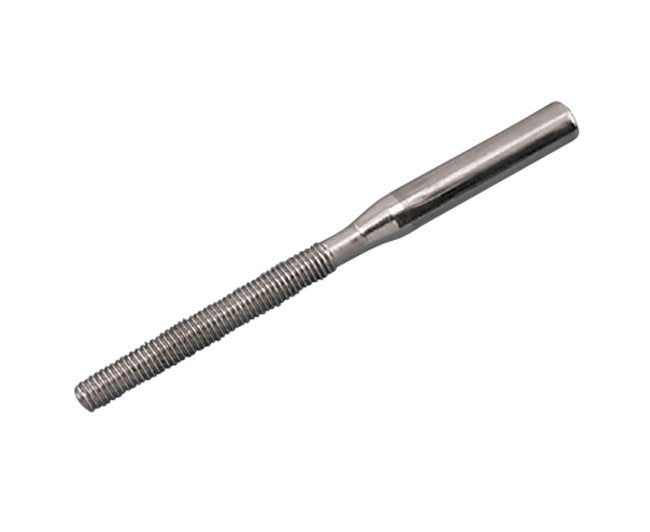

316 Stainless Steel UNF Thread Rail Swage Stud

316 Stainless Steel UNF Thread Rail Swage Stud

SKU:STA-f4e06f

Durable 316 Stainless Steel Swage Stud for wire sizes 1/8" to 3/16", UNF Threads, ideal for marine and industrial use.

Regular price $7.99
Regular price Sale price $7.99
Sale

Initiate Order

316 Stainless Steel UNF Thread Rail Swage Stud

316 Stainless Steel UNF Thread Rail Swage Stud

$7.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel UNF Thread Rail Swage Stud

316 Stainless Steel UNF Thread Rail Swage Stud

$7.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 316 Stainless Steel UNF Thread Rail Swage Stud is designed to accommodate wire sizes ranging from 1/8" to 3/16", featuring both right-hand and left-hand threads for versatile applications. Crafted from grade 316 stainless steel, this precision-machined swage stud offers exceptional corrosion resistance and long-lasting durability. Ideal for marine, industrial, and architectural wire rope assemblies, this reliable component ensures secure and lasting connections in various environments.

Product Specifications

Specifications After Swage
0.22 in
Specifications Before Swage
0.25 in

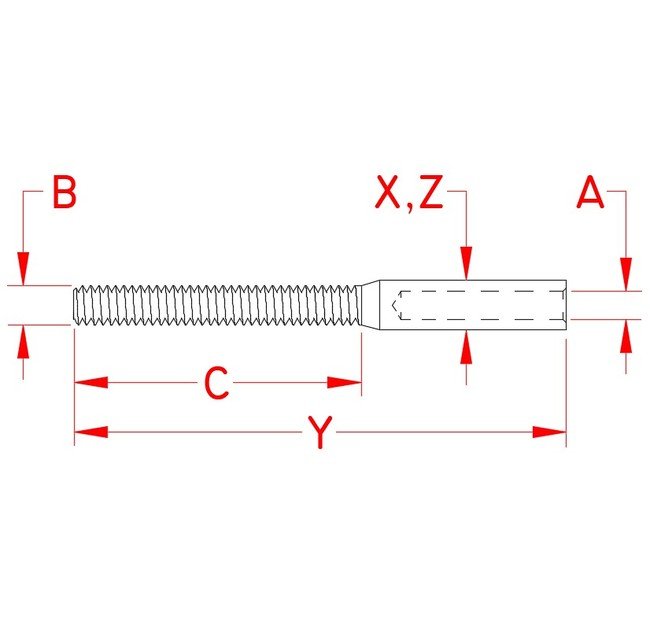

Specifications Dimension A
1/8 in
Specifications Dimension B
1/4 in
Specifications Dimension C
2.25 in
Specifications Dimension X
0.25 in
Specifications Dimension Y
4.00 in
Specifications Dimension Z
0.25 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.04 lb
CAGE
1CXX6
NAICS
332722
PSC
5307
