316 Stainless Steel Unthreaded Yoke End

Name: 316 Stainless Steel Unthreaded Yoke End
Brand: Suncor Stainless, Inc.
SKU: STA-ca455d
Price: 34.99 USD
Availability: OutOfStock

SKU:STA-ca455d

High-quality 316 Stainless Steel Unthreaded Yoke End for marine & industrial applications. Corrosion-resistant, durable, and Suncor exclusive.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

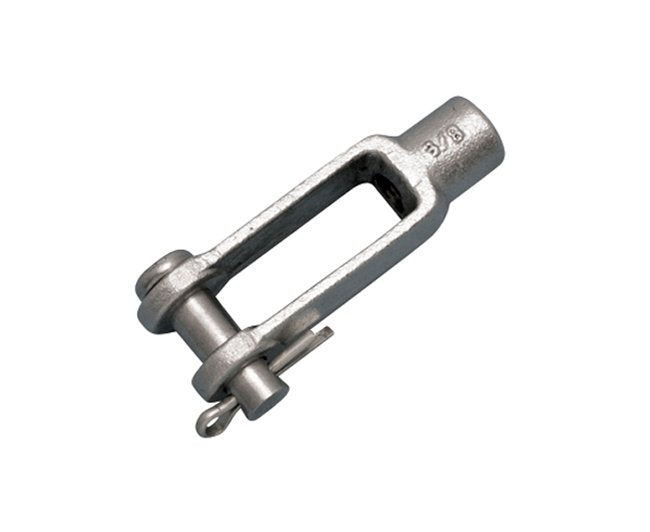

The 316 Stainless Steel Unthreaded Yoke End is a high-quality, durable component designed for marine and industrial turnbuckle applications. Made from premium grade 316-NM stainless steel, this yoke end offers exceptional corrosion resistance and longevity. With dimensions ranging from 3/16" to 3/4" and a working load limit of 2200 lb, it ensures reliable performance in demanding environments. This Suncor exclusive product is drop forged for superior strength and precision, meeting the stringent requirements of both consumer and institutional buyers.

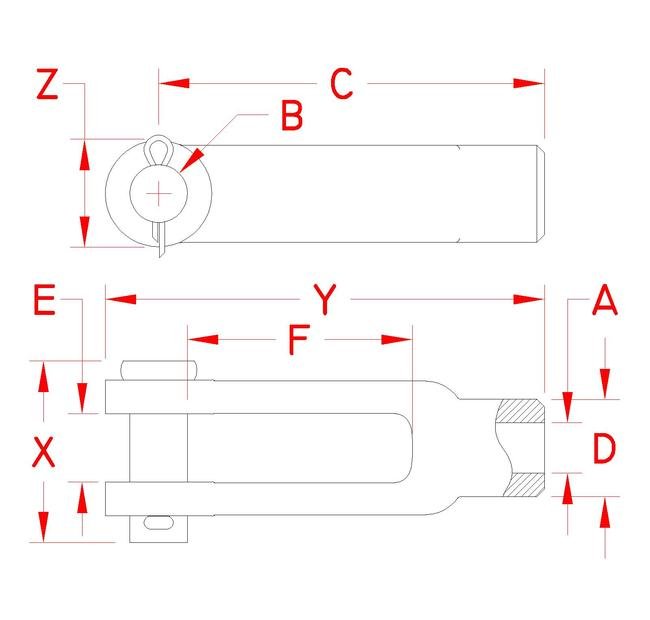

Product Specifications

Specifications Dimension A

0.45 in

Specifications Dimension B

0.50 in

Specifications Dimension C

3.00 in

Specifications Dimension D

0.81 in

Specifications Dimension E

0.58 in

Specifications Dimension F

1.65 in

Specifications Dimension X

1.58 in

Specifications Dimension Y

3.50 in

Specifications Dimension Z

0.97 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Suncor Exclusive

Yes

Specifications Weight

0.51 lb

Specifications Working Load Limit Wll

2200 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

316 Stainless Steel Unthreaded Yoke End
