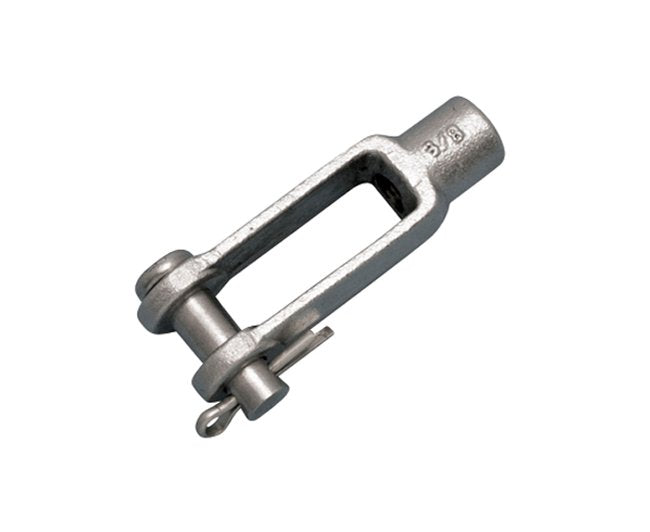

316 Stainless Steel Unthreaded Yoke End

Name: 316 Stainless Steel Unthreaded Yoke End
Brand: Suncor Stainless, Inc.
SKU: STA-b7a94d
Price: 34.99 USD
Availability: OutOfStock

SKU:STA-b7a94d

High-grade 316 stainless steel Unthreaded Yoke End for marine and industrial use. Superior corrosion resistance and durability in a range of sizes.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your marine and industrial turnbuckle applications with the 316 Stainless Steel Unthreaded Yoke End. Made from high-quality grade 316 stainless steel, this yoke end ensures maximum corrosion resistance and durability. Available in sizes from 3/16" to 3/4", it is designed for reliability under heavy loads. The drop forged fabrication and Suncor exclusive design guarantee superior performance, making it a perfect choice for demanding environments.

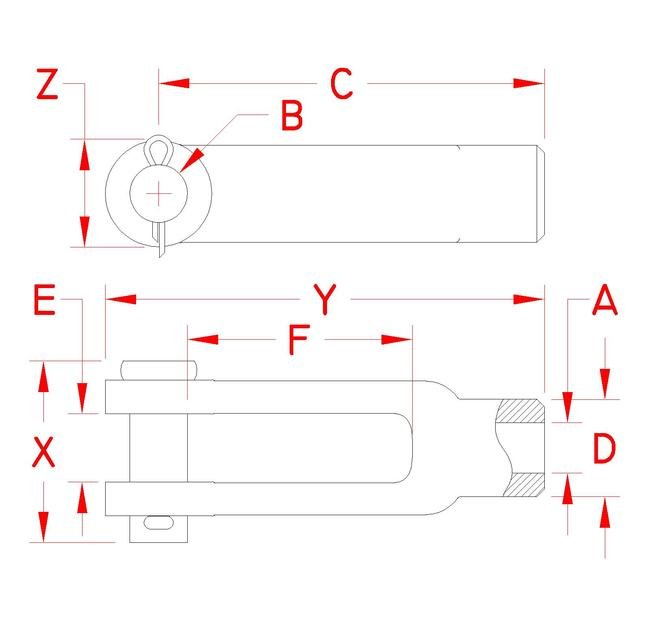

Product Specifications

Specifications Dimension A

0.58 in

Specifications Dimension B

0.63 in

Specifications Dimension C

4.94 in

Specifications Dimension D

1.06 in

Specifications Dimension E

0.70 in

Specifications Dimension F

3.37 in

Specifications Dimension X

1.92 in

Specifications Dimension Y

5.54 in

Specifications Dimension Z

1.15 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Import

Specifications Material

316-NM Stainless Steel

Specifications Suncor Exclusive

Yes

Specifications Weight

1.16 lb

Specifications Working Load Limit Wll

3500 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

316 Stainless Steel Unthreaded Yoke End
