316 Stainless Steel US Round Pin Chain Shackle - Suncor

316 Stainless Steel US Round Pin Chain Shackle - Suncor

SKU:STA-22faf6

Durable 316 Stainless Steel Round Pin Chain Shackle: Corrosion-resistant, high WLL, Fed Spec RR-C-271 Type IVB Class 1 compliant.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

316 Stainless Steel US Round Pin Chain Shackle - Suncor

316 Stainless Steel US Round Pin Chain Shackle - Suncor

$29.99

Quantity: 1

Claim Your Seller Account

316 Stainless Steel US Round Pin Chain Shackle - Suncor

316 Stainless Steel US Round Pin Chain Shackle - Suncor

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

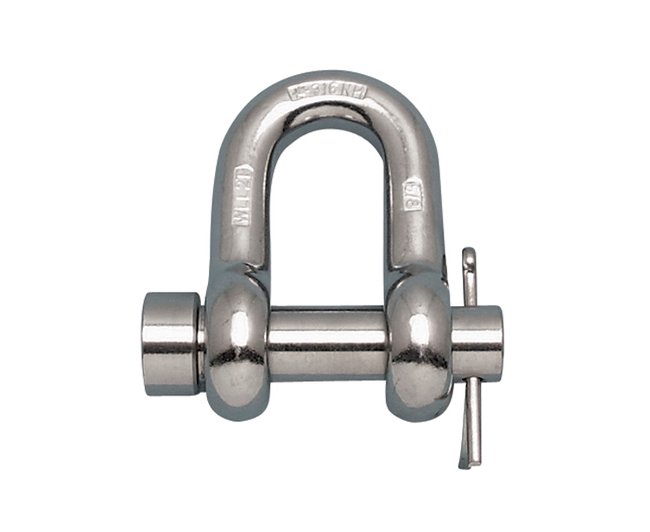

The 316 Stainless Steel US Round Pin Chain Shackle by Suncor is a high-quality industrial and marine-grade shackle featuring an oversize round pin for secure connections. Built from grade 316-NM stainless steel through drop forging, this chain shackle ensures maximum corrosion resistance and durability. With a 1,300 lb Working Load Limit (WLL), this Suncor exclusive shackle meets Fed Spec RR-C-271 Type IVB Class 1 standards, making it ideal for heavy-duty applications.

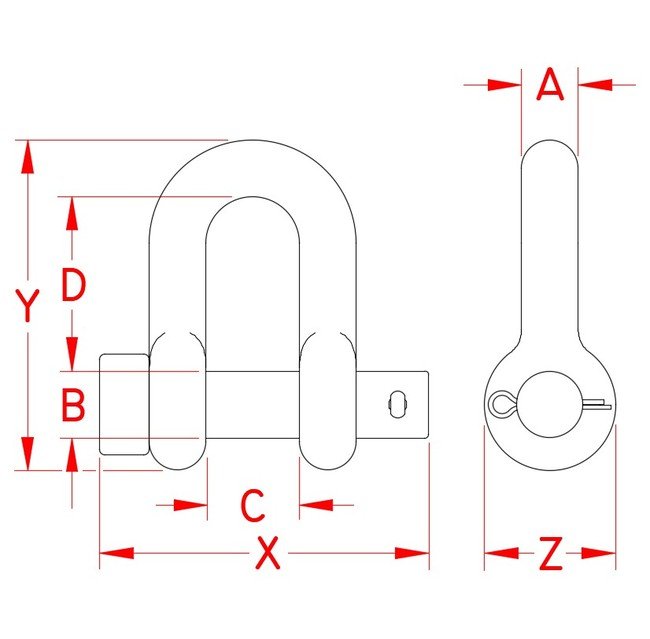

Product Specifications

Specifications Dimension A
5/16 in
Specifications Dimension B
0.38 in
Specifications Dimension C
0.52 in
Specifications Dimension D
1.02 in
Specifications Dimension X
1.77 in
Specifications Dimension Y
1.85 in
Specifications Dimension Z
0.73 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
Class 1 | Fed. Spec. RR-C-271 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
0.15 lb
Specifications Working Load Limit Wll
1,300 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
