316SS Bulkhead Male Connector - Griplok, 3/8 Tube x 1/4 MNPT
316SS Bulkhead Male Connector - Griplok, 3/8 Tube x 1/4 MNPT
SKU:SSP-614e97
High-quality 316SS Griplok Bulkhead Male Connector - 3/8 Tube x 1/4 MNPT, ensures secure, leak-free connections in industrial settings.
Regular price
$26.06
Regular price
Sale price
$26.06
Unit price
per
Initiate Order
316SS Bulkhead Male Connector - Griplok, 3/8 Tube x 1/4 MNPT
$26.06
Quantity: 1
Claim Your Seller Account
316SS Bulkhead Male Connector - Griplok, 3/8 Tube x 1/4 MNPT
$26.06
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

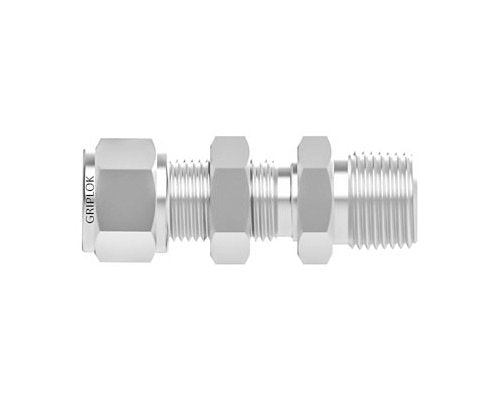

The 316SS Bulkhead Male Connector by SSP Corp. is designed for precision and durability. With a Tube Fitting connection size of 3/8 inches and MNPT connection size of 1/4 inches, this Griplok fitting ensures a secure and leak-free connection. Crafted from high-grade 316 stainless steel, it guarantees resistance to corrosion and extreme conditions. The straight shape and bulkhead design facilitate easy installations even in tight spaces, meeting the stringent requirements of industrial applications. Trust in the reliability and performance of this connector for your instrumentation needs.

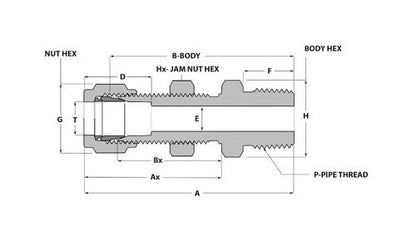

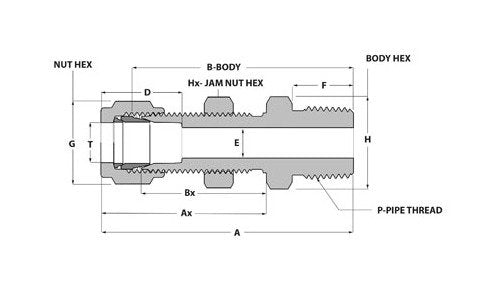

Product Specifications
Dimensions A
2.31 in
Dimensions Ax
1.45 in
Dimensions B
1.97 in
Dimensions Bx
1.16 in
Dimensions D
0.71 in
Dimensions E
0.28 in
Dimensions F
0.56 in
Dimensions G
11/16 in
Dimensions H
3/4 in
Dimensions Hx
3/4 in
Dimensions Maximum Panel Thickness
0.44 in
Dimensions P
1/4 in
Dimensions Panel Hole Drill Size
37/64 in
Dimensions T
3/8 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
26.06 USD
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
