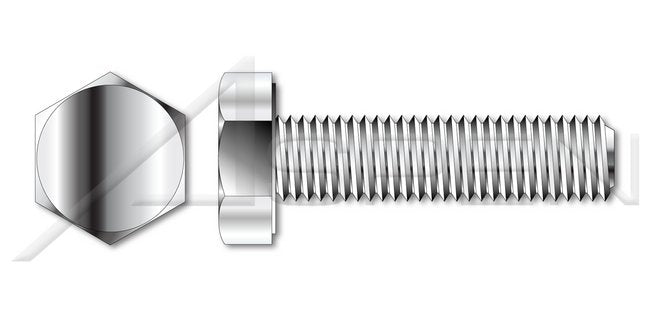

316Ti Stainless Steel DIN 933/ISO 4017 Metric Full Thread Hex Head Cap Screw Bolt

Name: 316Ti Stainless Steel DIN 933/ISO 4017 Metric Full Thread Hex Head Cap Screw Bolt
Brand: Aspen Fasteners
SKU: BOL-85010c
Price: 49.99 USD
Availability: OutOfStock

SKU:BOL-85010c

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Hex Bolts have a six-sided hexagonally shaped head designed to be mated with a nut. Conversely, Cap Screws are designed to be threaded into a pre-tapped hole, for example a piece of machinery. Cap Screws are typically produced to tighter tolerances than bolts and will feature a washer face under the head and a chamfered point.

Product Specifications

Additional Information

Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.Stainless steel significantly improves resistance to tarnishing or corrosion.Washer face provides a precision bearing surface.Type 316ti stainless steel is a titanium-stabilized version of type 316 stainless steel.Chamfered point improves engagement with a nut or pre-tapped hole.

Specifications Coating

Uncoated

Specifications Drive Style

External Hex Drive

Specifications Head Detail

Washer Face

Specifications Head Style

Hex Head

Specifications Industry Standards And Specifications

German Institute for Standardization (DIN 933) | International Organization for Standardization (ISO 4017)

Specifications Material

Stainless Steel

Specifications Material Grade

American Iron and Steel Institute (AISI) 316Ti Stainless Steel

Specifications Point

Chamfered Point

Specifications System Of Measurement

Metric

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

Specifications Thread Pitch

Coarse Thread

316Ti Stainless Steel DIN 933/ISO 4017 Metric Full Thread Hex Head Cap Screw Bolt
