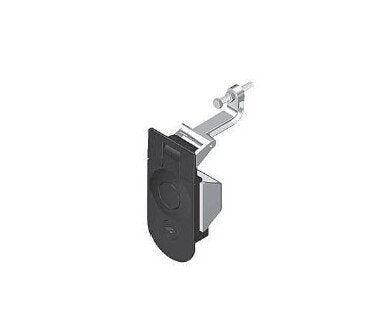

31mm Non-Locking Handle Compression Latch with D Bracket

Name: 31mm Non-Locking Handle Compression Latch with D Bracket
Brand: All Electronics Hardware
SKU: IND-5788b0
Price: 24.99 USD
Availability: OutOfStock

SKU:IND-5788b0

Secure doors and flaps with the 31mm Non-Locking Handle Compression Latch. Durable, reliable, and easy to install.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 31mm Minimum Panel Thickness Non-Locking Handle Compression Latch with D Mounting Bracket is a durable and versatile solution for secure latching and locking of doors and flaps in industrial settings. This latch, designed by All Electronics Hardware, features a robust construction with a mild steel cam and die-cast zinc housing, handle, and trigger. With a minimum panel thickness of 31mm and a maximum grip range of 57mm, this latch offers a reliable compressive mechanism and a smooth surface finish. Ideal for ensuring safety and convenience in various applications, this latch combines strength and functionality to meet your security needs.

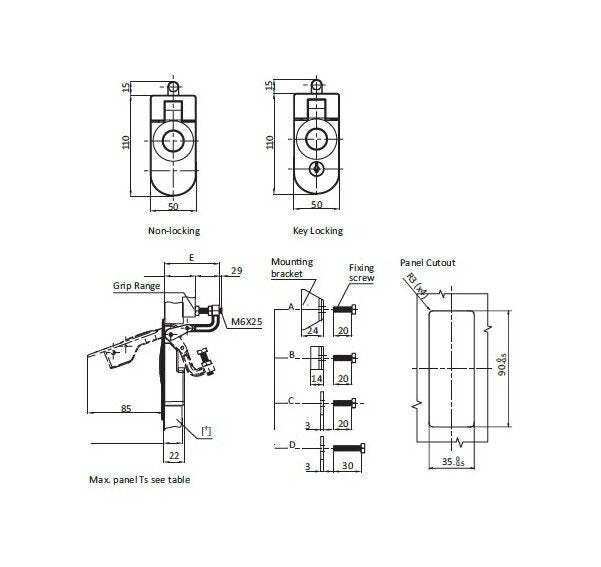

Product Specifications

Specifications Cylinder Style

Non-Locking

Specifications Dimension E

72 mm

Specifications Material

Cam: Mild Steel | Housing, Handle, and Trigger: Die-Cast Zinc

Specifications Maximum Grip Range

57 mm

Specifications Maximum Panel Thickness

41 mm

Specifications Minimum Grip Range

45 mm

Specifications Minimum Panel Thickness

31 mm

Specifications Mounting Bracket

Specifications Surface Finish

Bolt: Zinc Plated | Housing, Handle, and Trigger: Black Powder Coated

31mm Non-Locking Handle Compression Latch with D Bracket
