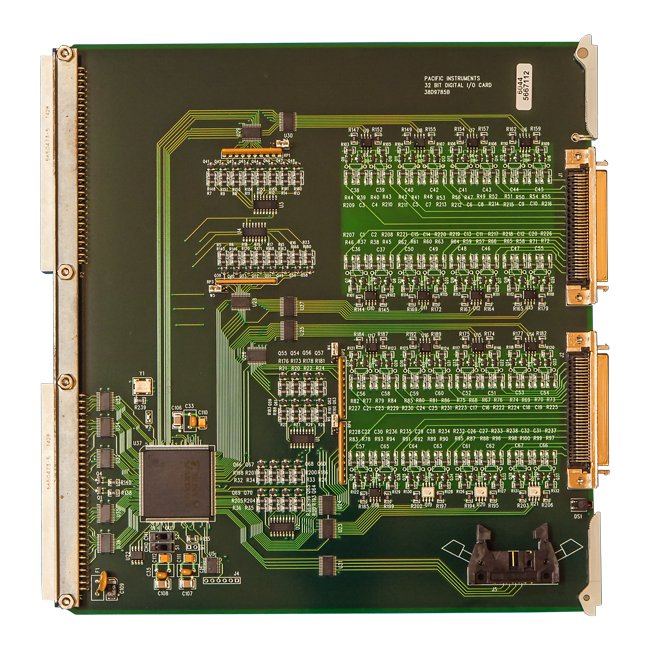

32-Bit Alarm Module with Discrete I/O
32-Bit Alarm Module with Discrete I/O
SKU:INT-6b3918
Versatile 32-bit module with discrete I/O for precise alarm monitoring and direct programming. Ideal for integrated systems.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
32-Bit Alarm Module with Discrete I/O
$899.99
Quantity: 1
Claim Your Seller Account
32-Bit Alarm Module with Discrete I/O
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 32-Bit Alarm Module with Discrete I/O is a versatile solution offering 32 digital inputs/outputs with TTL/CMOS or isolated inputs. This module features Program Mode for direct output programming, Alarm Mode for generating outputs based on set limits, and programmable persistence to prevent false alarms. Ideal for monitoring and controlling devices, this module is user-configurable to suit diverse industrial needs, ensuring reliable performance and seamless integration within Integrated Conditioning Acquisition & Control Systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Discrete Input Glitch Capture
Enabled by software to detect and record events of 100 nS or longer duration that occur between sample periods. Reset on reading.
Discrete Input Levels Isolated
On is 2.6 Volts or greater, up to a maximum of +50 Volts. Source must be capable of supplying up to 2.0 mA. Off is 2.0 Volts or less. Isolation is greater than 10,000 megohms.
Discrete Input Levels Ttlcmos
On is 2.5 Volts or greater, up to +5 Volts maximum. Off is 0.8 Volts or less.
Discrete Input Type
Each discrete has two input types: TTL/CMOS and Isolated. The input type used is determined by wiring of the connector.
Discrete Output Alarm Outputs
Preprogrammed output discrete set high or low in response to alarm violation. Latency is 2 sample periods from the digitizing of signal causing alarm.
Discrete Output Latch
Discrete outputs may be programmed to latch in which case they will not reset until cleared.
Discrete Output Levels Open Collector
+5 Volt maximum external power source, 200 mA maximum sink current. Use external 5 Volt relays for isolated outputs.
Discrete Output Levels Ttl
On is +4.8 Volts minimum; off is +0.15 Volts maximum from 1K Ohm source impedance.
Discrete Output Mode
Each discrete output can respond to one of three data sources:1) Data words sent via the system interface,2) Comparison of data from measurement channels in the same enclosure to programmed limits (Alarm Mode) and3) The 6000 system-wide alarm bus.
Discrete Output Programming
Output data word is loaded by program instruction during time when measurement data is not being sent to the computer. Latency will depend on system throughput rate and scan table programming.
General Connectors
Two 68-pin Micro DB68 (SCSI-3) connectors. Connectors are located on the front and 6-foot cables with screw-terminal breakout panels are supplied.
General Humidity
Up to 95% without condensation.
General Mounting
Occupies one slot in Series 6000 enclosures.
General Temperature
0 to +50 ºC
Operation Io States
The state of the Inputs and Outputs is available for inclusion in the output data stream as two 16-bit data words identified as Channel 1 (0-15) and Channel 2 (16-31)
Operation Number
Thirty-two discrete channels that are configured by switches as 32 Inputs, 32 Outputs or 16 Inputs and 16 Outputs.
Operation Rate
Outputs to the 6000 data bus update at the maximum system sample rate.
Ordering Information Ordering Information
6044 - Discrete Input/Output and Alarm Module
Overview Measurement Type
Digital In | Digital Out
