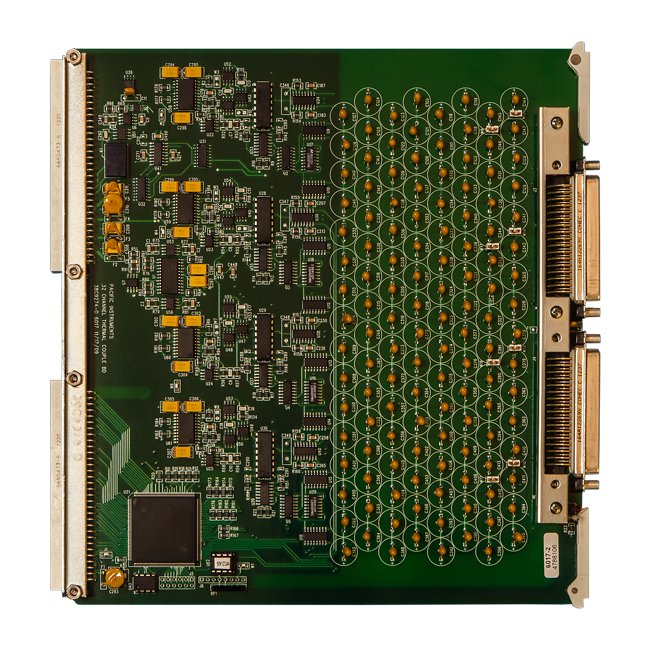

32-Channel Voltage Thermocouple Amplifier Digitizer
32-Channel Voltage Thermocouple Amplifier Digitizer
SKU:INT-fef6f9
High-performance 32-Ch Volt/Thermocouple Amp-Digitizer with precise calibration & multiplexed channels for accurate data acquisition.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
32-Channel Voltage Thermocouple Amplifier Digitizer
$899.99
Quantity: 1
Claim Your Seller Account
32-Channel Voltage Thermocouple Amplifier Digitizer
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 32-Channel Voltage/Thermocouple Amplifier-Digitizer is a high-performance solution for precise data acquisition in integrated control systems. With programmable gains ranging from 1 to 5,000 and 0.05% accuracy, this device ensures reliable measurements. It features automatic zero and gain calibration, low-pass filter, and up to 2 kS/s per channel with 16-bit resolution. The architecture allows for low crosstalk and high accuracy, making it ideal for institutions requiring top-notch performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Amplifier Bandwidth
Determined by input filter, 1 kHz (-3 dB) maximum.
Amplifier Cm Voltage
±10 V
Amplifier Common Mode
75 dB plus gain in dB to 110 dB, DC to 60 Hz.
Amplifier Crosstalk
-86 dB for full scale signal on adjacent channels.
Amplifier Gain
Programmable 1-5000, in 1, 2, 3, 5 steps, with ±0.05% accuracy.
Amplifier Gain Stability
±0.01%, ±0.005%/ºC.
Amplifier Linearity Amplifier
±0.01% for gains < 1,000, ±0.02% for gains 1,000 and higher.
Amplifier Noise 1 Khz
2 uV rms RTI plus 0.5 mV rms RTO
Amplifier Source Current
±25 nA, ±0.1 nA/ºC.
Amplifier Zero
Automatic to ±1 µV RTI, ±0.5 mV RTO.
Amplifier Zero Stability
±5 µV RTI, ±1 mV RTO, ±1 µV/ºC RTI, ±0.2 mV/ºC RTO. Short term: ±2 µV RTI, ±0.4 mV RTO for 8 hours.
Calibration Voltage Substitution
Alternate input for external calibration reference. Programmable attenuation steps of 1, 0.1, and 0.01 with ±0.01% accuracy. Output of the attenuator is provided on a rear panel connector for calibration.
Calibration Zero Calibration
Amplifier input disconnected and shorted for zero calibration.
Digitizer Alarms
Two alarms each with upper and lower limits that are programmable from negative to positive full scale. Limits checked on each ADC sample.
Digitizer Continuity
Monotonic to 15 bits.
Digitizer Digitizer Linearity
±2 LSB (±0.006%)
Digitizer Resolution
16-bits, two's complement output.
Digitizer Sample Rate
Programmable up to 2K samples per second per channel. | Up to 2 kS/s
Filter Other
Other filter frequencies are available.
Filter Type
Two-pole, low-pass, RC Filter with 10 Hz or 100 Hz (-3 dB frequency) or wideband.
Input Configuration
32 channels differential, 2-wire with shield.
Input Configuration Thermocouple Inputs
Differential, 2 wire with shield.
Input Impedance
50 Megohms, shunted by 1,000 pF.
Input Protection
±25 Volts differential and common mode.
Input Range
±2 millivolts to ±10 Volts full scale.
Input Type Thermocouple Inputs
B, C, E, J, K, N, R, S, and T.
Mechanical Connectors
Two 50-pin, Type D input connectors. Connectors are mounted on the front and mates are supplied.
Mechanical Mounting
Occupies one slot in Series 6000 enclosures.
Mechanical Temperature
0 to +50 ºC
Ordering Information Ordering Information
6017B-F100-RTD - 32-Ch Thermocouple, RTD Ref w/ 100Hz Filter. | 6017B-F10-RTD - 32-Ch Thermocouple, RTD Ref w/ 10Hz Filter. | 6017B-FWB-RTD - 32-Ch Thermocouple, RTD Ref w/ WB Filter. | 6017-F10 - 32-Ch Voltage, Thermocouple w/ 10Hz Filter. | 6017-F100 - 32-Ch Voltage, Thermocouple w/ 100Hz Filter. | 6017-FWB - 32-Ch Voltage, Thermocouple w/ WB Filter. | 6084-32 - 32-Ch Thermocouple Reference. | 6084-32-RTD - 32-Ch Thermocouple Reference w/ RTD.
Overview Analog Bandwidth
1 kHz
Overview Analog Output
None
Overview Excitationtransducer Power
None
Overview Filter
RC, 2-Pole
Overview Measurement Type
Thermocouple | Voltage
Overview Sample Rate Digitizer
0 to 2 kS/s
