3200 Series Vortex Tube - Large Size, 75 SCFM Flow Rate
3200 Series Vortex Tube - Large Size, 75 SCFM Flow Rate
SKU:VOR-52b738
Achieve adjustable temperature control with the 3200 Series Vortex Tube - perfect for industrial cooling needs.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
3200 Series Vortex Tube - Large Size, 75 SCFM Flow Rate
$299.99
Quantity: 1
Claim Your Seller Account
3200 Series Vortex Tube - Large Size, 75 SCFM Flow Rate
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

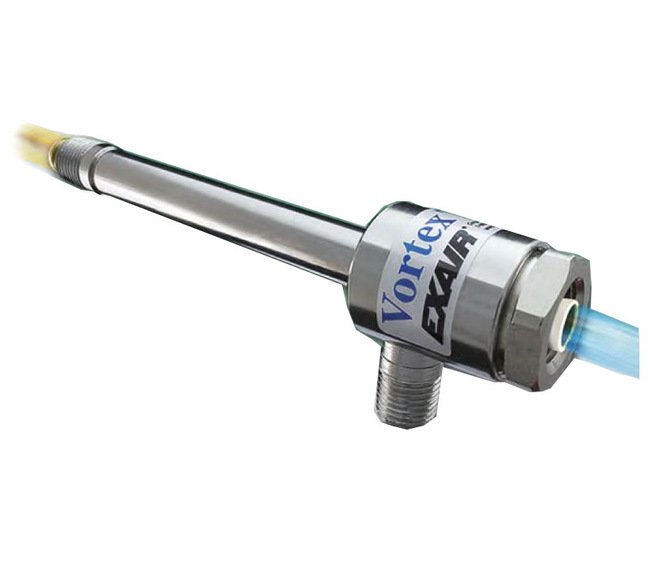

The 3200 Series Large Size Vortex Tube offers a cost-effective and reliable cooling solution for industrial applications. This maintenance-free vortex tube utilizes compressed air to generate two air streams, one hot and one cold, with temperatures ranging from -50° to +260°F. With a flow rate of 75 SCFM and maximum cooling power of 5100 Btu/hr, it is ideal for cooling CCTV cameras, electronic controls, gas samples, and more. Its stainless steel construction ensures durability, while features like adjustable temperature settings and instant cold air make it versatile and efficient.
Product Specifications
Specifications Advantages
Adjustable Temperature | Durable - Stainless Steel | Instant Cold Air | Interchangeable Generators | Low Cost | Maintenance Free | No Electricity or Chemicals | No Moving Parts | Small, Lightweight
Specifications Applications
Cooling CCTV Cameras | Cooling Electronic Controls | Cooling Environmental Chambers | Cooling Gas Samples | Cooling Heat Seals | Cooling Machining Operations | Cooling Soldered Parts | Electronic Component Cooling | Setting Hot Melts
Specifications Flow Rate
75 SCFM | 2124 SLPM
Specifications Maximum Cooling Power
5100 Btu/hr | 1285 kcal/h
Specifications Note
3200 series Vortex Tubes optimize temperature drop and airflow to produce maximum cooling power or Btu/hr. (Kcal/hr.). Specify 3200 series Vortex Tubes for most general cooling applications.
Specifications Sound Level
96 dBA
Specifications Tube Size
Large
