33.7 Ohm High-Fidelity Audio Transformer
33.7 Ohm High-Fidelity Audio Transformer
SKU:AUD-5905ec
Experience premium audio fidelity with the 33.7 Ohm High-Fidelity Audio Transformer from Triad's J Series. Enjoy unparalleled performance and precision.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
33.7 Ohm High-Fidelity Audio Transformer
$89.99
Quantity: 1
Claim Your Seller Account
33.7 Ohm High-Fidelity Audio Transformer
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 33.7 Ohm High-Fidelity Audio Transformer from the J Series by Triad offers unparalleled durability and precision, essential for modern designs. Constructed with Mu-Metal for magnetic immunity and 60 to 80 dB Hum reduction, this transformer features a large step-up turns ratio to efficiently couple low-level input signals. Ideal for signal pre-amplification, inter-stage isolation, and impedance matching, it ensures low-level high fidelity with excellent unwanted noise reduction, providing exceptional performance for diverse applications.
Product Specifications
Applications Applications
Balanced Line or Mike to Single Grid
Direct Current Dc Resistance Dc Resistance Primary
33.7 Ohm
Direct Current Dc Resistance Dc Resistance Secondary
4040 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Max
1 mW
Electrical Specifications At 25 Degree Celsius C Temperature Ove
1:10.16

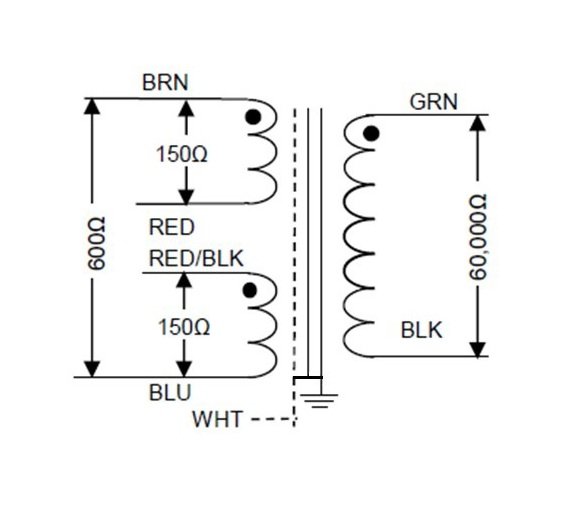

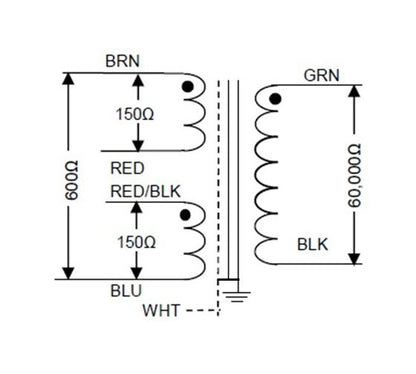

Electrical Specifications At 25 Degree Celsius C Temperature Pri
150 Ohm | 600 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Sec
60000 Ohm
Features Features
Low level high fidelity. Single-hole mounting, allowing rotation for maximum hum reduction. Alloy shielding gives 40 to 60 dB hum reduction. Wide frequency ranges. Flexible leads for ease of mounting. Input units electrostatically and magnetically shielded . Lightweight. Smooth, baked enamel cases, 1-3/8" diameter, 1-3/4" above chassis . Legible circuit diagrams permanently affixed to every case.
Note Note
Static Shield

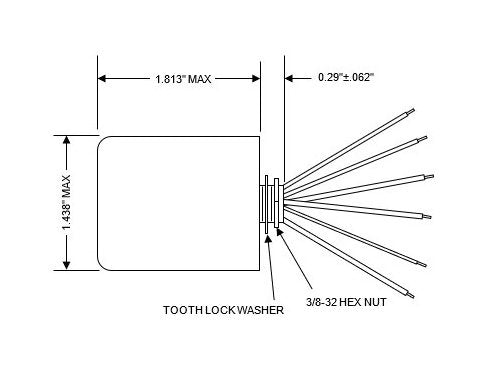

Specifications Case Dimension D
1-3/8 in
Specifications Case Dimension H
1-3/4 in
Specifications Case Type
J
Specifications Connections
Leads
Specifications Frequency Response At 3 Db
30 to 15000
Specifications Hum Reduction
40 to 60 dB
Specifications Maximum Unit Weight
0.35 lb
Specifications Mounting Hole Diameter
3/8 in
Specifications Rms Test Voltage
500
Specifications Transformer Contact Type
Center Tap | Split Winding
