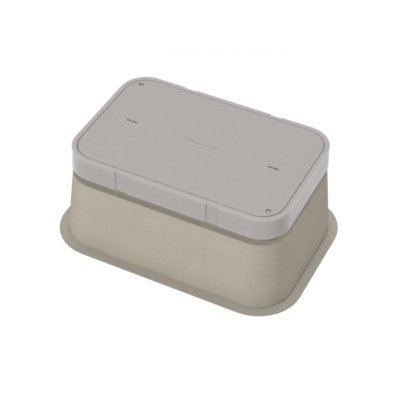

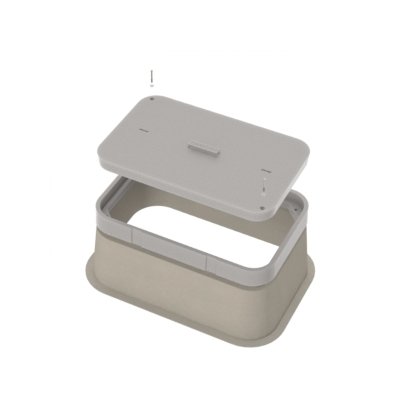

33 in. Fiberglass Concrete Assembly - Tapered Sides, T15/20K
33 in. Fiberglass Concrete Assembly - Tapered Sides, T15/20K
SKU:HAN-26d551
Durable 33 in. Fiberglass Concrete Assembly with tapered sides and high compressive strength for telecom infrastructure.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


Enhance your infrastructure with the 33 in. Fiberglass Concrete Assembly featuring tapered sides, stainless steel hex bolts, and high compressive strength of 19440 psi. This assembly complies with WUC 3.6 and ANSI/SCTE 77 standards, ensuring durability and reliability for your telecommunications needs. The advanced composite material offers UV resistance, non-conductivity, and chemical resilience, making it ideal for outdoor installations that require safety and longevity.
Product Specifications
Available Options
Penta Bolts, 1/2'' Penta Coil Bolts, Telephone EMS, Power EMS, 2 Racks Installed, 4 Racks Installed, Ø4'' Conduit Knockouts, Pulling Eyes, 2 Piece Cover, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
36 in
Dimensional Attributes Inside Depth
33 in
Dimensional Attributes Inside Length
45 5/8 in | 54 1/8 in
Dimensional Attributes Inside Width For 45 58 In Length
28 in
Dimensional Attributes Inside Width For 54 18 In Length
36 5/8 in
Dimensional Attributes Length
48 in
Dimensional Attributes Width
30 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D-543 and ASTM D-570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticStreet LightingTrafficCATVCommunications
Specifications Assembly Weight
401.4 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
182.4 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
219 lb
Specifications Fiber Reinforced Polymers Frp Compressive Strengt
19440 psi
Specifications Fiber Reinforced Polymers Frp Flexural Strength P
16,830 psi
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 -''T15/20K''
Specifications Loaded Pallet Weight
1656 lb
Specifications Material
Fiberglass Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
4
Specifications Side
Tapered
Specifications Type
Fiberglass Concrete Assemblies
