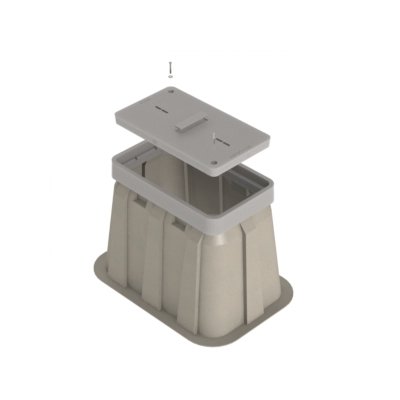

• 33-Inch Fiberglass Concrete Assembly with 33" Inside Depth - Image 1

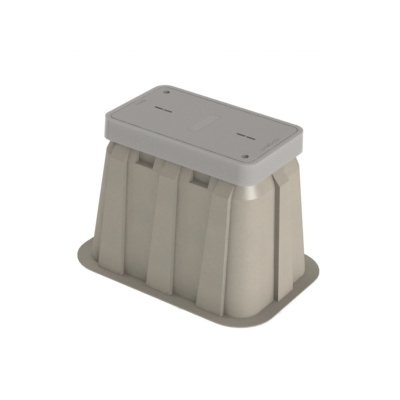

  • 33-Inch Fiberglass Concrete Assembly with 33" Inside Depth - Image 2
1 2
Colonial Teltek →

33-Inch Fiberglass Concrete Assembly with 33" Inside Depth

33-Inch Fiberglass Concrete Assembly with 33" Inside Depth

HAN-0e0cd7

High-strength 33" Fiberglass Concrete Assembly with FRP construction, skid-resistant cover, and integral drain holes for incidental traffic areas.

$899.99
$899.99
Sale

Initiate Order

33-Inch Fiberglass Concrete Assembly with 33" Inside Depth

33-Inch Fiberglass Concrete Assembly with 33" Inside Depth

$899.99

Quantity: 1

Claim Your Seller Account

33-Inch Fiberglass Concrete Assembly with 33" Inside Depth

33-Inch Fiberglass Concrete Assembly with 33" Inside Depth

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 33-Inch Fiberglass Concrete Assembly features a tapered side design and is constructed with high-quality Fiber Reinforced Polymers (FRP) to meet ASTM standards. This assembly offers a Compressive Strength of 11500 psi, Flexural Strength of 4000 psi, and is USDA/RUS Approved. With a skid-resistant cover and integral drain holes, this assembly is suitable for incidental traffic areas like parking lots and sidewalks.

Product Specifications

Available Options
Penta Bolts, Telephone EMS, Power EMS, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
36 in
Dimensional Attributes Inside Depth
33 in
Dimensional Attributes Inside Diameter
17 7/8 in | 38 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D-543 and ASTM D-570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticStreet LightingTrafficCATVCommunications
Specifications Assembly Weight
140.8 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
81.7 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength
11500 psi
Specifications Cover Weight
59.1 lb
Specifications Fiber Reinforced Polymers Frp Compressive Strengt
19440 psi
Specifications Fiber Reinforced Polymers Frp Flexural Strength P
16,830 psi
Specifications Flexural Strength
4000 psi
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 -''T15/20K"
Specifications Loaded Pallet Weight
739 lb
Specifications Material
Fiberglass Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
5
Specifications Side
Tapered
Specifications Type
Fiberglass Concrete Assemblies
