3400 Btu/hr NEMA 12 Purge Thermostat Control Cabinet Cooler

Name: 3400 Btu/hr NEMA 12 Purge Thermostat Control Cabinet Cooler
Brand: Exair LLC
SKU: NEM-2b7603
Price: 349.99 USD
Availability: OutOfStock

SKU:NEM-2b7603

Efficient 3400 Btu/hr NEMA 12 Cabinet Cooler with vortex tube technology for reliable cooling and purge in electronic control panels.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

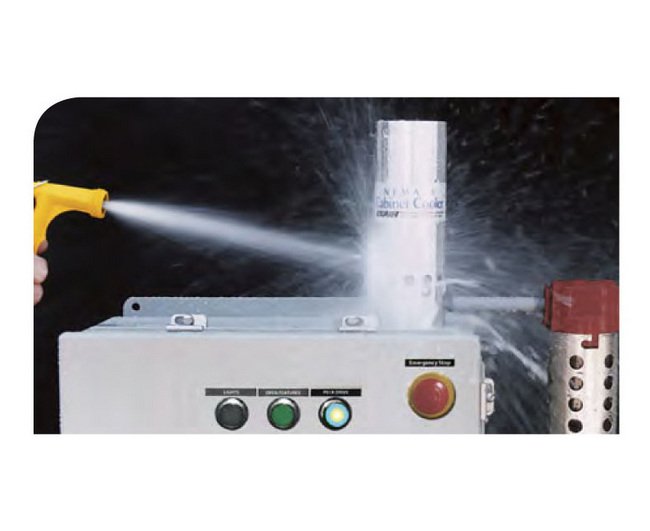

The 3400 Btu/hr NEMA 12 (IP54) Cabinet Cooler System is a high-efficiency solution for cooling and purging electronic control panels in various industrial applications. Built with a vortex tube technology, this maintenance-free system produces cold air from compressed air without any moving parts, ensuring reliable performance. With a non-hazardous purge feature, this cooler maintains a positive pressure in the enclosure to prevent contamination. It offers quiet operation, compact design, and easy installation, making it ideal for critical environments. By stabilizing temperature and humidity levels, it safeguards equipment from heat damage, circuit drift, and dirt contamination.

Product Specifications

Specifications Capacity

3,400 Btu/hr | 857 kcal/h

Specifications Note

Non-Hazardous Purge Cabinet Cooler Systems are ideal for dirty areas where contaminants might normally pass through small holes or conduits. Under normal conditions, the NHP Cabinet Cooler Systems provide a slight positive pressure in the enclosure by passing 1 SCFM (28 SLPM) of air through the cooler, when the solenoid valve is in the closed position. When the thermostat detects high temperature, it energizes the solenoid valve to pass full line pressure to the Cabinet Cooler, giving it full cooling capability.

Specifications Sound Level

75 dBA
