35-1 Series Locking Top Circuit Board Support
35-1 Series Locking Top Circuit Board Support
SKU:01C-876171
Secure and durable Circuit Board Support for mounting PCBs onto chassis. RoHS compliant with temperature range of -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
35-1 Series Locking Top Circuit Board Support
$29.99
Quantity: 1
Claim Your Seller Account
35-1 Series Locking Top Circuit Board Support
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

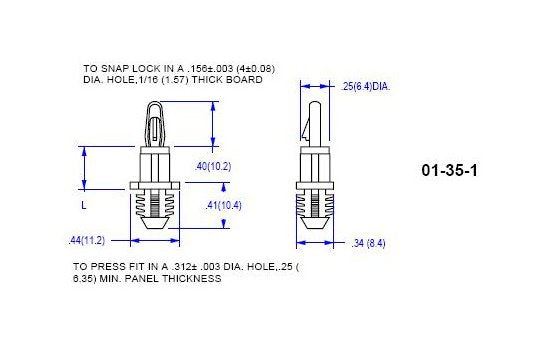

The 35-1 Series Locking Top Circuit Board Support is designed for secure mounting of PCBs onto chassis systems. Featuring a Blind Hole/X-Mass Tree Style, this support is engineered to lock into .062-inch thick PCBs and .250-inch minimum thick chassis, ensuring stability and reliability in electronic assemblies. Made from Nylon 66 UL94V-2 material (UL94V-0 available), this support meets ASTM D 4066, PA111 standards and is RoHS compliant, offering a temperature range of -40 to 185F (-40 to 85C). Each pack contains 500 supports, providing ample supply for various applications.
Product Specifications
Specifications Dim L 015
.437 (11.1) inches (mm)
