35-2 Series Circuit Board Support
35-2 Series Circuit Board Support
SKU:01C-fe8626
Secure and durable Circuit Board Support for .062 Thick PCBs and .250 Minimum Thick Chassis, RoHS compliant, ASTM D 4066, PA111 standards, pack of 500.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
35-2 Series Circuit Board Support
$39.99
Quantity: 1
Claim Your Seller Account
35-2 Series Circuit Board Support
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

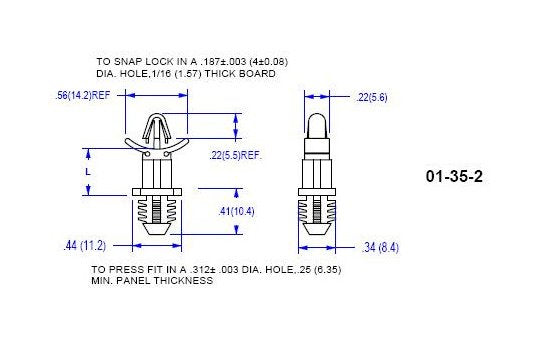

The 35-2 Series Circuit Board Support is a Blind Hole/X-Mass Tree Style PCB Support designed for .062 Thick PCBs and .250 Minimum Thick Chassis requirements. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support ensures a secure fit for PCBs with a .187 Hole while also locking securely into the Chassis. It comes in a pack of 500 pieces and meets ASTM D 4066, PA111 standards, and is RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), this support offers durability and reliability for various applications.
Product Specifications
Specifications Dim L 015
.625 (15.9) inches (mm)
