35-2 Series Circuit Board Supports
35-2 Series Circuit Board Supports
SKU:01C-f8e283
Securely mount .062 PCB onto .250 chassis with 35-2 Series Supports. Nylon 66, ASTM D4066, RoHS compliant, -40 to 185F range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
35-2 Series Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
35-2 Series Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

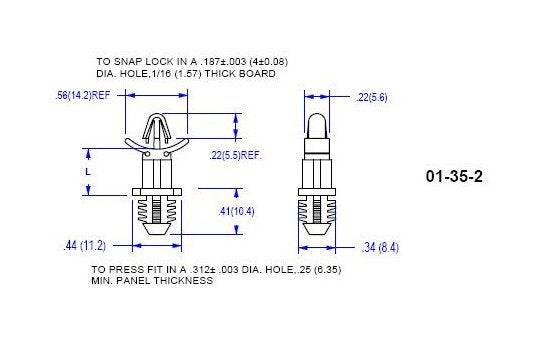

The 35-2 Series Circuit Board Supports are designed for secure mounting of PCBs with .062 thickness onto chassis with a minimum thickness of .250. These Blind Hole/X-Mass Tree style supports ensure a stable connection, locking firmly into the PCB's .187 hole and chassis hole of .312. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports meet ASTM D4066, PA111 standards and are RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), they offer durability and reliability for various applications.
Product Specifications
Specifications Dim L 015
1.00 (25.4) inches (mm)
