35-2 Series Circuit Board Supports
35-2 Series Circuit Board Supports
SKU:01C-84b4be
Secure and stable Circuit Board Support for .062 Thick PCBs with Blind Hole/X-Mass Tree Style. RoHS compliant, Nylon 66 UL94V-2 material, temperature range -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
35-2 Series Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
35-2 Series Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

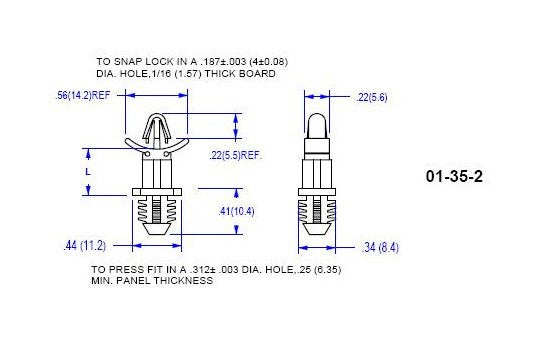

The 35-2 series Circuit Board Supports are designed with a .187 Board Hole for .062 Thick PCBs and a .312 Chassis Hole meeting a minimum chassis thickness of .250. Featuring a Blind Hole/X-Mass Tree Style, these PCB Supports provide secure locking into the PCB and chassis, ensuring stability and support for electronic components. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports comply with UL File No: E70062 and ASTM D 4066, PA111 standards. RoHS compliant and with a temperature range of -40 to 185F (-40 to 85C), these supports are ideal for a wide range of applications requiring reliability and durability.
Product Specifications
Specifications Dim L 015
.187 (4.8) inches (mm)
