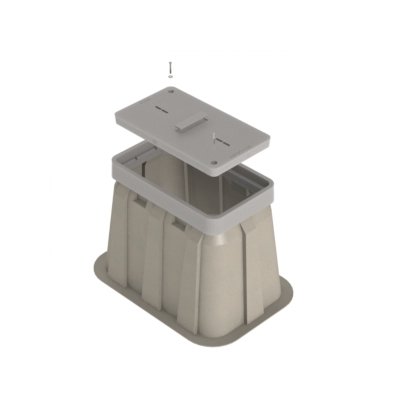

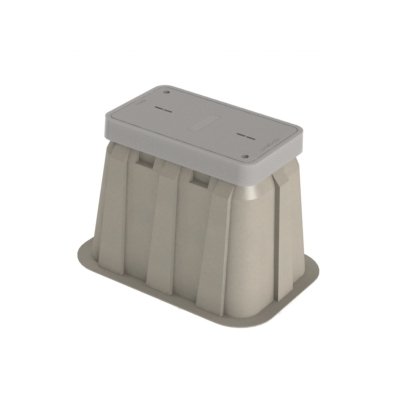

35-Inch Fiberglass Concrete Assembly with 35-Inch Inside Depth
35-Inch Fiberglass Concrete Assembly with 35-Inch Inside Depth
SKU:HAN-1c22e2
Durable 35-Inch Fiberglass Concrete Assembly meeting ASTM standards for strength and durability. Ideal for diverse applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
35-Inch Fiberglass Concrete Assembly with 35-Inch Inside Depth
$899.99
Quantity: 1
Claim Your Seller Account
35-Inch Fiberglass Concrete Assembly with 35-Inch Inside Depth
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 35-Inch Fiberglass Concrete Assembly offers a robust solution for various applications. Constructed with high-quality fiberglass and concrete materials, this assembly provides exceptional durability with a compressive strength of 87 MPa per ASTM standards. With features like non-conductivity and UV resistance, it ensures long-term performance in diverse environments. Additionally, the assembly meets industry standards including WUC 3.6 and ANSI/SCTE 77, making it suitable for federal, institutional, and commercial projects.
Product Specifications
Available Options
Penta Bolts, Telephone EMS, Power EMS, Custom Nameplate Installed, Custom Nameplate Shipped Separately, Standard Nameplate Installed, Standard Nameplate Shipped Separately
Dimensional Attributes Height
36 in
Dimensional Attributes Inside Clearance Diameter Bottom
32 in
Dimensional Attributes Inside Clearance Diameter Top
25 1/2 in
Dimensional Attributes Inside Depth
35 in
Dimensional Attributes Inside Diameter
34 3/4 in | 48 in
Features
USDA/RUS ApprovedDrop-In nameplateShipped assembledSkid resistant coverCast-in floating nut box - Integral drain holes
Load Ratings
Incidental Traffic - Parking Lot, Sidewalk Conforms to:WUC 3.6ASTM C 857ANSI/SCTE 77
Material Properties
Advanced composite: Very high strength to weight ratioNon-metallicNon-conductiveUV ResistantHigh impact resistantImpervious to chemicals and moistureMaterials tested in accordance with ASTM D-543 and ASTM D-570
Nameplates
One standard nameplate included with each assembly, installed at the factory or easily installed in the field. Custom nameplates are available. Contact customer service.Standard NameplatesElectricTelephoneFiber OpticWaterIrrigation Control ValveBroadbandTrafficCATVTraffic SignalCommunications
Specifications Assembly Weight
158 lb
Specifications Bolt Head Type
Hex
Specifications Bolt Material
Stainless Steel
Specifications Bolt Size
3/8 in
Specifications Box Weight
111 lb
Specifications Brand
newbasis, PCX™
Specifications Coefficient Of Friction Dry Per American Society
1.085
Specifications Compressive Strength Per American Society For Tes
87 MPa
Specifications Cover Weight
47 lb
Specifications Diameter
27 in
Specifications Fiber Reinforced Polymers Frp Compressive Strengt
134 MPa
Specifications Fiber Reinforced Polymers Frp Flexural Strength P
116 MPa
Specifications Flexural Strength Per American Society For Testin
20 MPa
Specifications Industry Standardscertifications
WUC 3.6, ANSI/SCTE 77 -''20K/T15''
Specifications Loaded Pallet Weight
475 lb
Specifications Material
Fiberglass Concrete
Specifications Packaging
Steel Banding, Edge Protection
Specifications Pallet Quantity
4
Specifications Side
Tapered
Specifications Type
Fiberglass Concrete Assemblies
