35 Series Circuit Board Support
35 Series Circuit Board Support
SKU:01C-ac9faa
Secure your PCBs with the 35 Series Circuit Board Support - designed for stability and compliance with industry standards. Made of Nylon 66 UL94V-2 material.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
35 Series Circuit Board Support
$24.99
Quantity: 1
Claim Your Seller Account
35 Series Circuit Board Support
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

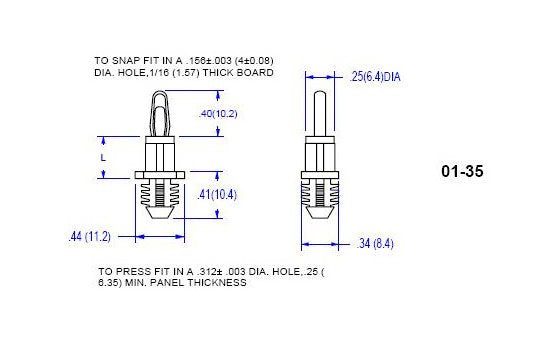

The 35 Series Circuit Board Support is a reliable solution for securing PCBs with .062 thick board holes into chassis with a minimum hole size of .312 inches. Designed in blind hole/X-Mass tree style, these supports ensure a snap fit into the PCB and a secure lock into the chassis, providing stability and support. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports are ASTM D 4066 and PA111 compliant, RoHS compliant, with a temperature range of -40 to 185F (-40 to 85C), meeting stringent industry standards for durability and safety.
Product Specifications
Specifications Dim L 015
.375 (9.5) inches (mm)
