35 Series Circuit Board Support - .156 Board Hole x .312 Chassis Hole
35 Series Circuit Board Support - .156 Board Hole x .312 Chassis Hole
SKU:01C-d9014c
Secure and durable Circuit Board Support for .062 PCB and .250 Chassis - Pack of 500
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
35 Series Circuit Board Support - .156 Board Hole x .312 Chassis Hole
$45.99
Quantity: 1
Claim Your Seller Account
35 Series Circuit Board Support - .156 Board Hole x .312 Chassis Hole
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

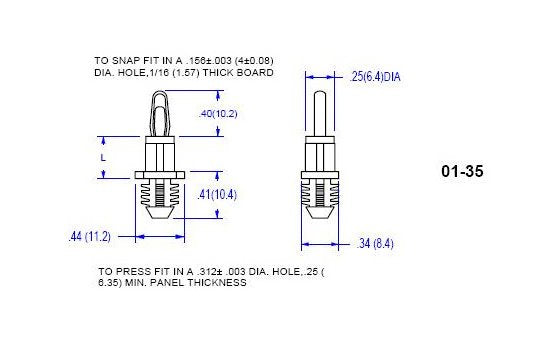

The 35 Series Circuit Board Support is designed for precise applications requiring support for PCBs with a thickness of .062 inches and a minimum chassis thickness of .250 inches. Featuring a Blind Hole/X-Mass Tree Style, this support ensures a secure snap fit into the PCB and locks into the chassis for stability. Made of Nylon 66 UL94V-2 material (UL94V-0 available upon request), this support is RoHS compliant and can withstand temperatures ranging from -40 to 185F. Each pack contains 500 supports to meet your project needs.
Product Specifications
Specifications Dim L 015
.625 (15.9) inches (mm)
