35 Series Circuit Board Support
35 Series Circuit Board Support
SKU:01C-2b2438
Sturdy and precise 35 Series Circuit Board Support for .062 thick PCBs, offering stability and compliance with UL standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
35 Series Circuit Board Support
$24.99
Quantity: 1
Claim Your Seller Account
35 Series Circuit Board Support
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

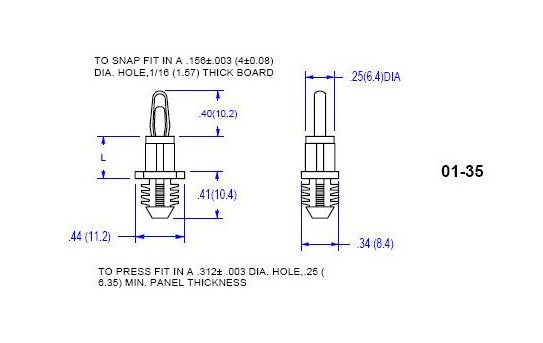

The 35 Series Circuit Board Support is designed for optimal stability and durability in electronic assemblies. Featuring a .156-inch board hole ideal for .062 thick PCBs and a .312-inch chassis hole suitable for a minimum chassis thickness of .250 inches, this support ensures secure positioning and alignment. Crafted from Nylon 66 UL94V-2 material (UL94V-0 available upon request), this support meets stringent quality standards, including UL File No: E70062 and ASTM D 4066 PA111. RoHS Compliant and offering a temperature range of -40 to 185F (-40 to 85C), it guarantees reliable performance in diverse environments.
Product Specifications
Specifications Dim L 015
.187 (4.8) inches (mm)
