35 Series PCB Support
35 Series PCB Support
SKU:01C-c9d3c9
Securely mount circuit boards with our 35 Series PCB Supports designed for .062" thick PCBs and .250" minimum thick chassis. RoHS compliant and ASTM D 4066 certified.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
35 Series PCB Support
$24.99
Quantity: 1
Claim Your Seller Account
35 Series PCB Support
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

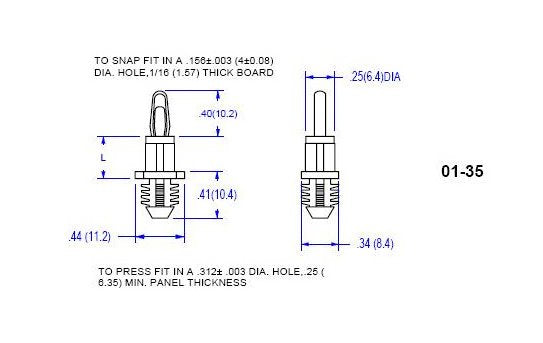

The 35 Series PCB Support is designed for seamless integration in circuit board assemblies, featuring a .156-inch board hole for .062-inch thick PCBs and a .312-inch chassis hole compatible with chassis of at least .250 inches. Crafted from Nylon 66 UL94V-2 material (UL94V-0 option available), these supports ensure secure snap-fit installation into PCBs, with a locking mechanism to firmly connect to chassis. With a RoHS compliant construction and a temperature range of -40 to 185F, these supports offer reliability and durability in a variety of applications. Each bag contains 500 supports, meeting ASTM D 4066 and PA111 standards.
Product Specifications
Specifications Dim L 015
.125 (3.2) inches (mm)
