35 Series PCB Support: .062 Thick Board, .250 Min Chassis Hole
35 Series PCB Support: .062 Thick Board, .250 Min Chassis Hole
SKU:01C-ba1d9e
35 Series PCB Support: Securely snap-fits PCB and chassis, RoHS compliant Nylon 66 material, -40 to 185F temp range
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
35 Series PCB Support: .062 Thick Board, .250 Min Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
35 Series PCB Support: .062 Thick Board, .250 Min Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

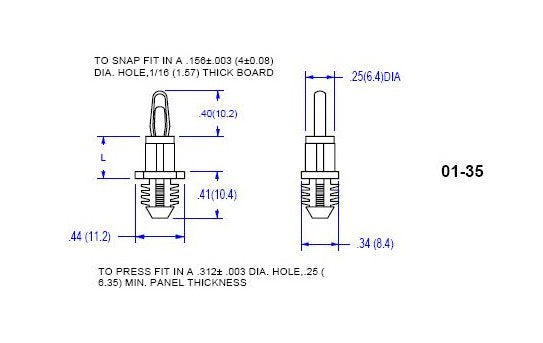

The 35 Series PCB Support is engineered for precision and reliability in circuit board installations. Designed with a .156 Board Hole compatible with .062 Thick PCBs and a .312 Chassis Hole meeting a .250 Minimum Chassis requirement, this support ensures a secure fit for seamless installations. Snap fit capability into the PCB and lock into the chassis provide stability and durability. Crafted from Nylon 66 UL94V-2 material, with UL94V-0 option available, this support meets stringent RoHS standards. With a temperature range of -40 to 185F (-40 to 85C), this support is ideal for a wide range of environments.
Product Specifications
Specifications Dim L 015
.750 (19.1) inches (mm)
