35 Series PCB Support with .156 Board Hole & .312 Chassis Hole
35 Series PCB Support with .156 Board Hole & .312 Chassis Hole
SKU:01C-057fbd
Securely support .062 thick PCBs in .250 thick chassis with 35 Series PCB Support. RoHS compliant, temperature range -40 to 185F.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
35 Series PCB Support with .156 Board Hole & .312 Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
35 Series PCB Support with .156 Board Hole & .312 Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

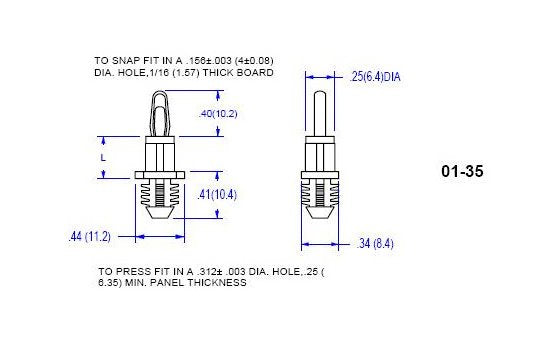

The 35 Series PCB Support is designed for easy installation with its Blind Hole/X-Mass Tree Style, ideal for .062 thick PCBs and minimum .250 thick chassis. This circuit board support ensures a secure fit and lock into the chassis, offering reliability and stability. Made of Nylon 66 UL94V-2 material (UL94V-0 available), it meets ASTM D4066, PA111 standards, and is RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), this support is a durable and versatile solution for various applications.
Product Specifications
Specifications Dim L 015
.500 (12.7) inches (mm)
