36 Series Reverse Locking PCB Support
36 Series Reverse Locking PCB Support
SKU:01C-b2258d
Securely mount circuit boards with the 36 Series Reverse Locking PCB Support. Compliant with RoHS standards, ideal for industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
36 Series Reverse Locking PCB Support
$24.99
Quantity: 1
Claim Your Seller Account
36 Series Reverse Locking PCB Support
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

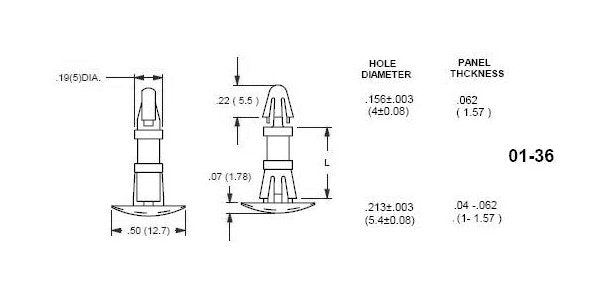

The 36 Series Reverse Locking PCB Support is designed for secure mounting of circuit boards with a .062 PCB Thickness onto chassis ranging from .04 to .062 thickness. With a .156 PCB Hole and a .213 Chassis Hole, this support ensures stable positioning. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support complies with RoHS standards. It offers reliability in temperature ranges from -40 to 185 F (-40 to 85 C), making it ideal for various industrial applications.
Product Specifications
Specifications L 015
.39 (10) inches (mm)
