360 Degree Wall Mount Jib Crane - Model 360 TDC
360 Degree Wall Mount Jib Crane - Model 360 TDC
SKU:REL-f8f78f
Efficiently transfer loads with the Model 360 TDC Jib Crane's 360-degree rotation, no costly foundations required. Enhance productivity!
Regular price
$4,799.00
Regular price
Sale price
$4,799.00
Unit price
per
Initiate Order
360 Degree Wall Mount Jib Crane - Model 360 TDC
$4,799.00
Quantity: 1
Claim Your Seller Account
360 Degree Wall Mount Jib Crane - Model 360 TDC
$4,799.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Jib Cranes Model 360 TDC offers a seamless 360-degree jib boom rotation, mounted effortlessly on your building column without the need for costly foundations or modifications. Designed for efficiency, this heavy-duty crane allows for smooth non-binding boom rotation thanks to its torsion-resistant construction and unique double knuckle bearing design. With a capacity of 1000 lbs and a weight of 530 lbs, this crane is a reliable solution for transferring loads between adjacent bays without double handling, streamlining your operations and boosting productivity.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

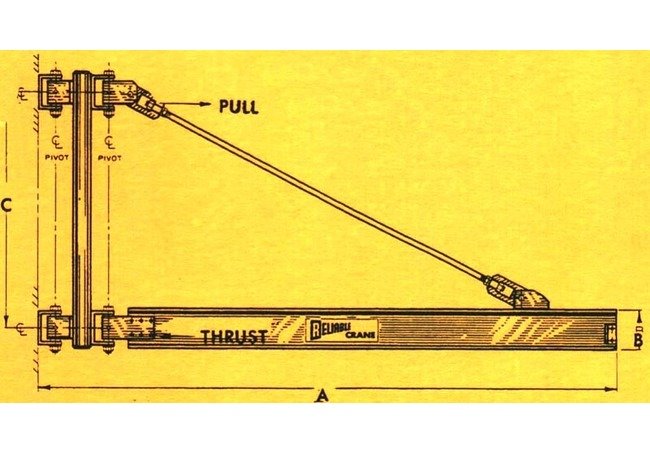

Specifications Boom Fitting D
4'-0"
Specifications Boom Size B
6 inches
Specifications Capacity
1000 lbs.
Specifications Hinge Centers C
5'-0"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
16'-0"
Specifications Thrust And Pull
4230 lbs.
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
530 lbs.
