360 Degree Wall Mount Jib Cranes Model 360 TDC
360 Degree Wall Mount Jib Cranes Model 360 TDC
SKU:REL-80177b
Opt for the efficient and reliable 360 Degree Wall Mount Jib Cranes Model 360 TDC for seamless load handling and smooth 360° rotation.
Regular price
$4,899.99
Regular price
Sale price
$4,899.99
Unit price
per
Initiate Order
360 Degree Wall Mount Jib Cranes Model 360 TDC
$4,899.99
Quantity: 1
Claim Your Seller Account
360 Degree Wall Mount Jib Cranes Model 360 TDC
$4,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

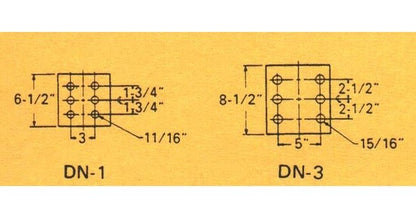

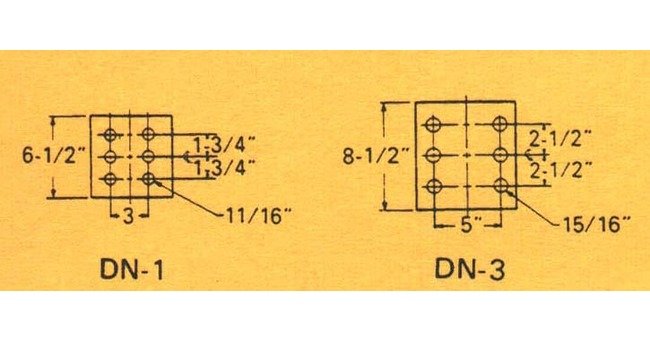

The 360 Degree Wall Mount Jib Cranes Model 360 TDC offer a reliable solution with 360° jib boom rotation mounted off your building column. No expensive foundation or column modifications needed, just twelve bolt holes for hassle-free installation. Designed for seamless load transfers between adjacent bays, these heavy-duty all steel fabricated cranes ensure smooth rotation with double knuckle bearing design. With a 4000 lbs. capacity and compliance with industry standards, these jib cranes are perfect for heavy-duty industrial applications.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

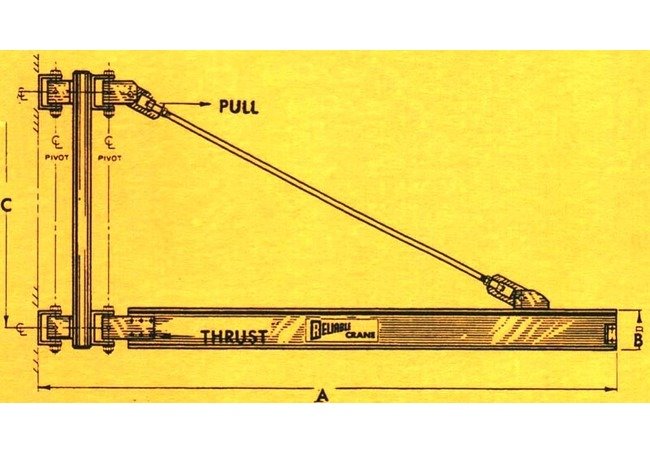

Specifications Boom Fitting D
5'-0"
Specifications Boom Size B
12 inches
Specifications Capacity
4000 lbs.
Specifications Hinge Centers C
6'-0"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
20'-0"
Specifications Thrust And Pull
17500 lbs.
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1440 lbs.
