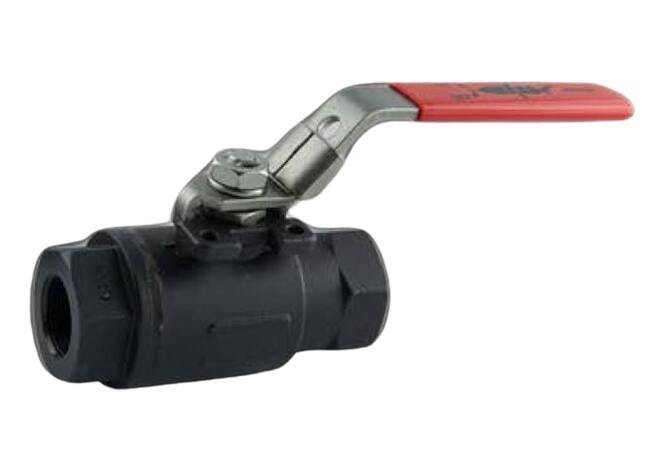

3600C Series 1-1/2 Inch Class 1500 NPT Threaded Ball Valve
3600C Series 1-1/2 Inch Class 1500 NPT Threaded Ball Valve
SKU:360-796539
High-quality 1-1/2 inch Class 1500 NPT Threaded Ball Valve with 3600 psi pressure rating, ASME B16.34 compliant, fire-safe approved, and ISO 5211 Mounting Pad.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
3600C Series 1-1/2 Inch Class 1500 NPT Threaded Ball Valve
$289.99
Quantity: 1
Claim Your Seller Account
3600C Series 1-1/2 Inch Class 1500 NPT Threaded Ball Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3600C Series 1-1/2 Inch Class 1500 NPT Threaded Ball Valve offers a full port design with a pressure rating of 3600 psi. Crafted with investment casting and ASME B16.34 compliance, it features a floating ball, fire-safe approval per API607 5th Ed., and ISO 5211 Mounting Pad. This valve is seal welded, pressure tested to API 598, and meets ASME B16.34, ISO 5211, and NACE MR-0175 standards, ensuring durability, safety, and reliable performance for various applications.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 1500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
1.50 in
Technical Specs Dimension B
5.3 in
Technical Specs Dimension C
4.34 in
Technical Specs Dimension D
10.16 in
Technical Specs Dimension E
3.85 in
Technical Specs Dimension F
2.50 in
Technical Specs Dimension G
0.34 in
Technical Specs Dimension H
0.392 in
Technical Specs Dimension J
0.623 in
Technical Specs Dimension K
2.756 in
Technical Specs Flow Coefficients Cv
140
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
750 in·lb
Technical Specs Mounting Pad Sizes
F07
Technical Specs Port Configuration
Full Port
Technical Specs Port Size
1-1/2 in
Technical Specs Pressure Rating
3600 psi
Technical Specs Pressure Test
BT2HA 36
Technical Specs Pressure Test For Seal Test Water
3300 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
4500 psi
Technical Specs Thread Size L
5/16 in.-18
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
4.590 kg
