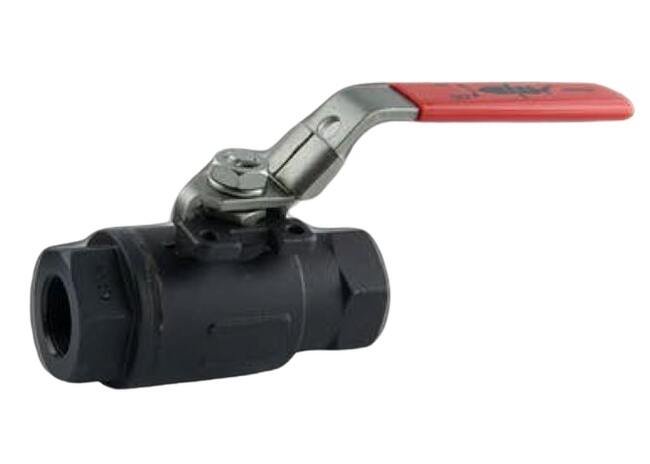

3600C Series 3/4 Inch Class 1500 NPT Threaded Ball Valve
3600C Series 3/4 Inch Class 1500 NPT Threaded Ball Valve
SKU:360-c97947
Premium 3/4 Inch Class 1500 NPT Threaded Ball Valve for industrial fluid control. ASME B16.34 & ISO 5211 compliant. Fire-safe & NACE MR-0175 approved.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
3600C Series 3/4 Inch Class 1500 NPT Threaded Ball Valve
$149.99
Quantity: 1
Claim Your Seller Account
3600C Series 3/4 Inch Class 1500 NPT Threaded Ball Valve
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3600C Series 3/4 Inch Class 1500 NPT Threaded Ball Valve is a top-tier solution for industrial fluid control. Crafted with precision investment casting, this valve offers a full port design, maximizing flow efficiency. It meets stringent standards like ASME B16.34 and ISO 5211, ensuring reliable performance. With fire-safe approval per API607 5th Ed. and NACE MR-0175 compliance, this valve guarantees safety in critical environments. The locking lever handle provides operational security, while the seal-welded construction enhances durability. Trust the 3600C Series for superior performance and longevity.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 1500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
0.75 in
Technical Specs Dimension B
4.3 in
Technical Specs Dimension C
2.89 in
Technical Specs Dimension D
5.83 in
Technical Specs Dimension E
2.13 in
Technical Specs Dimension F
1.32 in
Technical Specs Dimension G
0.21 in
Technical Specs Dimension H
0.274 in
Technical Specs Dimension J
0.436 in
Technical Specs Dimension K
1.654 in
Technical Specs Flow Coefficients Cv
32
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
120 in·lb
Technical Specs Mounting Pad Sizes
F04
Technical Specs Port Configuration
Full Port
Technical Specs Port Size
3/4 in
Technical Specs Pressure Rating
3600 psi
Technical Specs Pressure Test
BT2HA 36
Technical Specs Pressure Test For Seal Test Water
3300 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
4500 psi
Technical Specs Thread Size L
1/4 in.-20
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
1.301 kg
