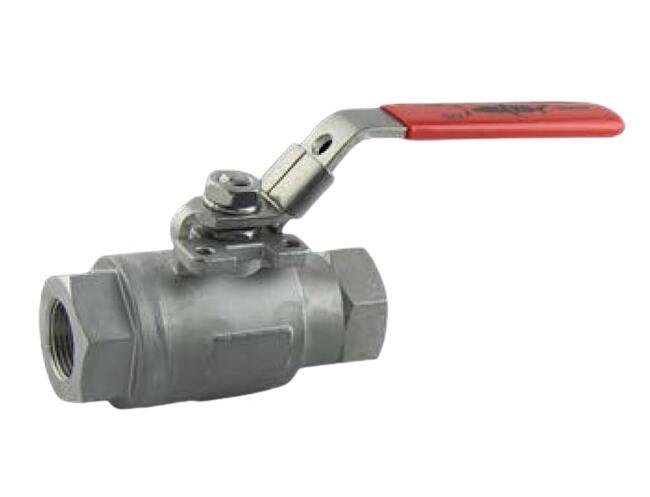

3600S Series 1/2" NPT Threaded Ball Valve - Class 1500
3600S Series 1/2" NPT Threaded Ball Valve - Class 1500
SKU:360-98cbee
Durable 1/2" NPT Threaded Ball Valve - Class 1500, ASME B16.34, ISO 5211 Compliant
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
3600S Series 1/2" NPT Threaded Ball Valve - Class 1500
$89.99
Quantity: 1
Claim Your Seller Account
3600S Series 1/2" NPT Threaded Ball Valve - Class 1500
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3600S Series 1/2" NPT Threaded Ball Valve offers exceptional performance in industrial applications. With a full port design, investment casting, and ASME B16.34 Class 1500 wall thickness, this valve ensures durability and reliability. It features a floating ball, fire-safe approval per API607 5th Ed., ISO 5211 Mounting Pad, locking lever handle, seal welded construction, and pressure tested to API 598 standards. With a maximum torque of 75 in·lb and a Cv of 16, this valve is suitable for high-pressure systems. Compliant with ASME B16.34, ISO 5211, NACE MR-0175, and meets stringent quality standards.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 1500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
0.50 in
Technical Specs Dimension B
4.0 in
Technical Specs Dimension C
2.22 in
Technical Specs Dimension D
5.00 in
Technical Specs Dimension E
1.64 in
Technical Specs Dimension F
1.00 in
Technical Specs Dimension G
0.18 in
Technical Specs Dimension H
0.195 in
Technical Specs Dimension J
0.311 in
Technical Specs Dimension K
1.417 in
Technical Specs Flow Coefficients Cv
16
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
75 in·lb
Technical Specs Mounting Pad Sizes
F03
Technical Specs Port Configuration
Full Port
Technical Specs Port Size
1/2 in
Technical Specs Pressure Rating
3600 psi
Technical Specs Pressure Test
BT2HA 36
Technical Specs Pressure Test For Seal Test Water
3300 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
4500 psi
Technical Specs Thread Size L
1/4 in.-20
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
0.737 kg
