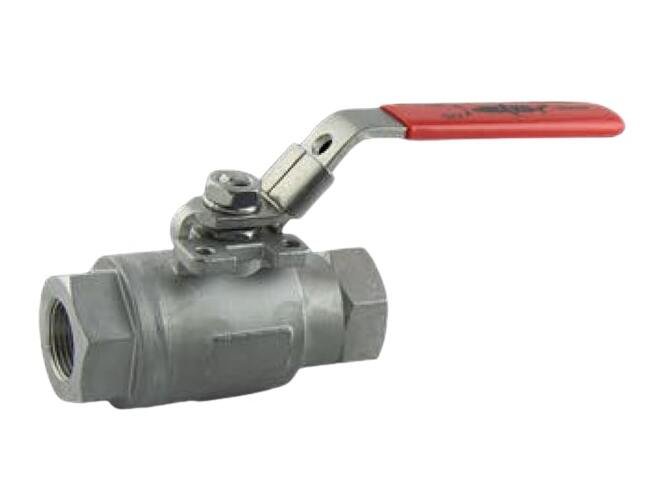

3600S Series 1" Class 1500 NPT Threaded Ball Valve
3600S Series 1" Class 1500 NPT Threaded Ball Valve
SKU:360-7aa8bb
Durable 1" Class 1500 NPT Ball Valve for high-pressure applications, ASME B16.34 compliant.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
3600S Series 1" Class 1500 NPT Threaded Ball Valve
$159.99
Quantity: 1
Claim Your Seller Account
3600S Series 1" Class 1500 NPT Threaded Ball Valve
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3600S Series 1 Inch Class 1500 NPT Threaded Ball Valve is a robust and reliable valve suitable for high-pressure applications. Constructed with precision through investment casting, it features a full port design for optimal flow, fire-safe approval per API607 standards, and ISO 5211 mounting pad for easy automation. This valve is seal welded, pressure tested to API 598 standards, and conforms to ASME B16.34, ISO 5211, and NACE MR-0175, ensuring adherence to industry-leading specifications.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 1500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
1.00 in
Technical Specs Dimension B
4.8 in
Technical Specs Dimension C
3.50 in
Technical Specs Dimension D
8.19 in
Technical Specs Dimension E
2.81 in
Technical Specs Dimension F
1.76 in
Technical Specs Dimension G
0.28 in
Technical Specs Dimension H
0.374 in
Technical Specs Dimension J
0.559 in
Technical Specs Dimension K
1.969 in
Technical Specs Flow Coefficients Cv
62
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
400 in·lb
Technical Specs Mounting Pad Sizes
F05
Technical Specs Port Configuration
Full Port
Technical Specs Port Size
1 in
Technical Specs Pressure Rating
3600 psi
Technical Specs Pressure Test
BT2HA 36
Technical Specs Pressure Test For Seal Test Water
3300 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
4500 psi
Technical Specs Thread Size L
1/4 in.-20
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
2.122 kg
