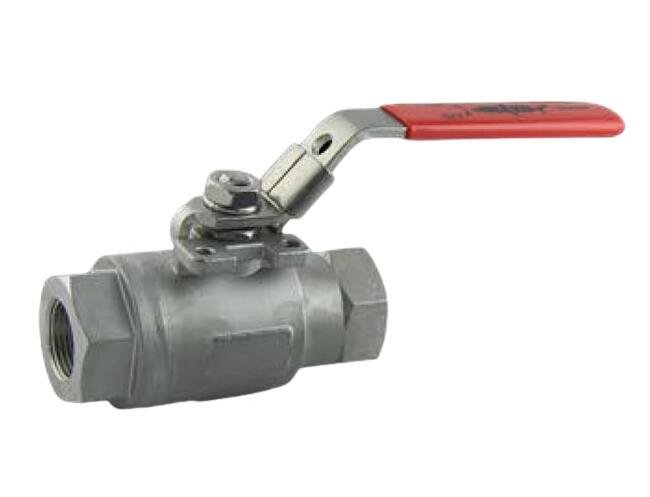

3600S Series 3/8" NPT Threaded Ball Valve
3600S Series 3/8" NPT Threaded Ball Valve
SKU:360-80c0ac
High-performance 3600S 3/8" NPT Ball Valve for industrial use, ASME B16.34 compliant, with Fire-Safe design & API 598 tested.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
3600S Series 3/8" NPT Threaded Ball Valve
$89.99
Quantity: 1
Claim Your Seller Account
3600S Series 3/8" NPT Threaded Ball Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3600S Series 3/8" NPT Threaded Ball Valve is a robust solution designed for demanding industrial applications. With a pressure rating of 3600 psi and compliance with ASME B16.34, ISO 5211, and NACE MR-0175 standards, this valve offers reliable performance. Features include Investment Casting, Fire-Safe Approval, and Seal Welded construction for enhanced durability. The Floating Ball design ensures smooth operation and the Locking Lever Handle provides added security. Tested to API 598 standards, this valve guarantees top-notch quality and performance.
Product Specifications
Features Features
Investment CastingWall Thickness - ASME B16.34 Class 1500Floating BallFire-Safe Approved Per API607 5th Ed.ISO 5211 Mounting PadLocking Lever HandleSeal WeldedPressure Tested to API 598
Technical Specs Dimension A
0.50 in
Technical Specs Dimension B
3.0 in
Technical Specs Dimension C
2.22 in
Technical Specs Dimension D
5.00 in
Technical Specs Dimension E
1.64 in
Technical Specs Dimension F
1.00 in
Technical Specs Dimension G
0.18 in
Technical Specs Dimension H
0.195 in
Technical Specs Dimension J
0.311 in
Technical Specs Dimension K
1.417 in
Technical Specs Flow Coefficients Cv
10
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B16.34 | International Organization for Standardization (ISO 5211) | National Association of Corrosion Engineers (NACE) MR-0175 Compliant
Technical Specs Maximum Torque
75 in·lb
Technical Specs Mounting Pad Sizes
F03
Technical Specs Port Configuration
Full Port
Technical Specs Port Size
3/8 in
Technical Specs Pressure Rating
3600 psi
Technical Specs Pressure Test
BT2HA 36
Technical Specs Pressure Test For Seal Test Water
3300 psi
Technical Specs Pressure Test For Seat Test Air
85 psi
Technical Specs Pressure Test For Shell Test Water
4500 psi
Technical Specs Thread Size L
1/4 in.-20
Technical Specs Thread Type
National Pipe Thread (NPT) | Unified National Coarse Thread (UNC)
Technical Specs Weight
0.620 kg
