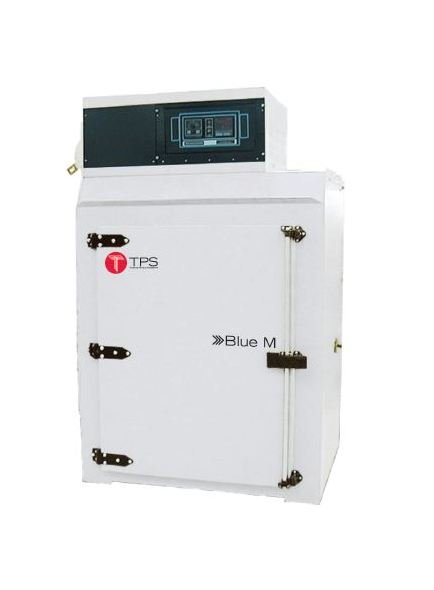

366 Model Industrial Batch Oven
366 Model Industrial Batch Oven
SKU:BLU-5ef698
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
366 Model Industrial Batch Oven
$49.99
Quantity: 1
Claim Your Seller Account
366 Model Industrial Batch Oven
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial Batch Ovens have for years been meeting a variety of test and production applications. Their reliability and fine performance have made them the choice of many industries.
Product Specifications
Specifications Ac Voltage At 3 Phase
208 V | 240 V | 480 V
Specifications Electrical Service
Hi Power | Standard
Specifications Exterior Depth
51 in | 129.5 mm
Specifications Exterior Height
85 in | 215.9 mm
Specifications Exterior Width
63 in | 160 mm
Specifications Frequency
60 Hz
Specifications Interior Depth
36 in | 91.4 mm
Specifications Interior Height
48 in | 121.9 mm
Specifications Interior Volume
36 ft³
Specifications Interior Width
36 in | 91.4 mm
Specifications Line Current Per Phase At 208 Volts V 3 Phase Hi
33 A
Specifications Line Current Per Phase At 208 Volts V 3 Phase Sta
33 A
Specifications Line Current Per Phase At 240 Volts V 3 Phase Hi
70 A
Specifications Line Current Per Phase At 240 Volts V 3 Phase Sta
47 A
Specifications Line Current Per Phase At 480 Volts V 3 Phase Hi
35 A
Specifications Line Current Per Phase At 480 Volts V 3 Phase Sta
24 A
Specifications Machine Footprint
22.3 ft²
Specifications Rated Power At 208 Volts V 3 Phase Hi Power
11 kW
Specifications Rated Power At 208 Volts V 3 Phase Standard
11 kW
Specifications Rated Power At 240 Volts V 3 Phase Hi Power
27 kW
Specifications Rated Power At 240 Volts V 3 Phase Standard
18 kW
Specifications Rated Power At 480 Volts V 3 Phase Hi Power
27 kW
Specifications Rated Power At 480 Volts V 3 Phase Standard
18 kW
Specifications Roll In Rack Options
Custom designed roll-in racks for product fixturing | Pass-through “tunnel” design with front and rear doors | Roll-in rack shelves | Special truck channel or flat uninsulated floor for customer designed racks | Stainless steel roll-in racks
Specifications Standard Batch Oven Options
Stainless steel slotted shelves | High-temperature capability of 399°C (750°F) | High power for fast heat-up, high exhaust or large loads | Door switch | Motorized intake damper | Welded and sealed inner chamber | 24-hour, 7-day program timer | 10 Inch (in) circular chart recorder | Reverse door hinge | Back-up over-temperature protection
