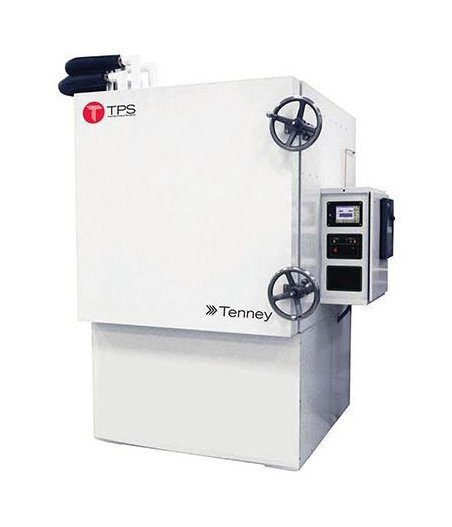

Tenney’s Tenney Strat Altitude Chambers simulate altitudes up to 200,000 feet. With an overall temperature range of -70°C to +177°C, humidity capabilities of 20% to 98% RH, and workspace sizes ranging from 5- to 64-cubic-feet, this highly developed line of altitude chambers offers one of the broadest selections in the industry. We are confident that our solid altitude chamber construction and precise operating systems will provide the exacting performance and a high degree of reliability for your altitude testing needs.
Product Specifications
Specifications Cooling Water Flow Rate 20c
3 gpm | 6 gpm | 9 gpm
Specifications Current
63 A | 96 A | 130 A
Specifications Exterior Depth
123 in | 272 in | 3124 mm | 6909 mm
Specifications Exterior Height
90 in | 229 in | 2286 mm | 5817 mm
Specifications Exterior Width
160 in | 63 in | 1600 mm | 4064 mm
Specifications Features
Continuously welded, stainless steel, vapor-tight interior liners | Control tolerance is ±0.3°C and ±2% RH typical after stabilization | Linear pressure transducer to measure altitude | Non-corroding humidity system | Low-water protection on humidity system | Vertical-down recirculating conditioning stream
Specifications Fuse Current
80 A | 125 A | 175 A
Specifications Heater Capacity
8
Specifications Humidifier
2 W | 1 gph
Specifications System Horsepower
6 hp | 15 hp | 20 hp
Specifications Voltage
230 V
Specifications Weight
6550 lb | 2971 kg
Specifications Workspace Depth
48 in | 122 in | 1219 mm | 3099 mm
Specifications Workspace Height
36 in | 91 in | 914 mm | 2311 mm
Specifications Workspace Width
36 in | 91 in | 914 mm | 2311 mm
