37 Series Hinged Twist Lock - Wire Routing Device
37 Series Hinged Twist Lock - Wire Routing Device
SKU:03W-a2fd93
Securely fasten wires with the 37 Series Hinged Twist Lock. Flexible arm, reusable design in UL94V-2 Nylon 66 material. Ideal for wire routing devices.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
37 Series Hinged Twist Lock - Wire Routing Device
$12.99
Quantity: 1
Claim Your Seller Account
37 Series Hinged Twist Lock - Wire Routing Device
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

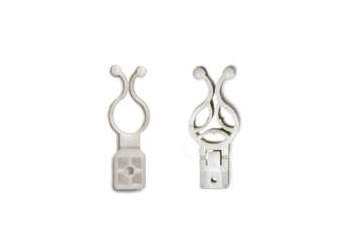

The 37 Series Hinged Twist Lock is a versatile wire routing solution designed for durable and secure fastening. This twist lock features a hinged screw mount for easy installation and removal, with a flexible arm for adaptability. Made from UL94V-2 compliant Nylon 66 material, this twist lock is reusable and releasable, ensuring cost-effective wire management. With dimensions tailored for precise wire organization and a #4 (M3) screw size compatibility, the 37 Series guarantees efficient wire routing in various applications.

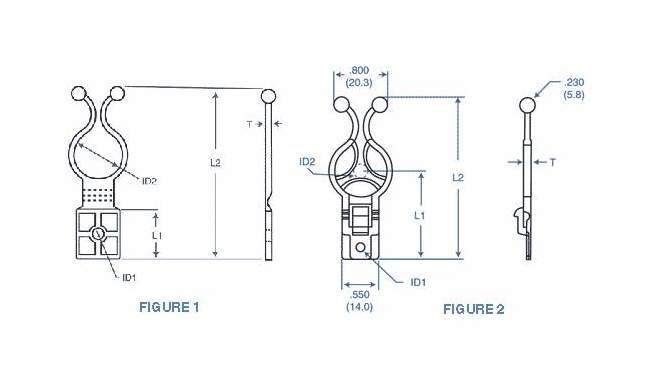

Product Specifications
Specifications Dim Id1
.130 (3.3) inches (mm)
Specifications Dim Id2
.14 - .48 (3.6 - 12.2) inches (mm)
Specifications Dim L1
1.32 (33.4) inches (mm)
Specifications Dim L2
2.4 (61.2) inches (mm)
Specifications Dim T
.12 (3.2) inches (mm)
Specifications Fig No
2
Specifications Screw Size
#4 (M3)
