37 Series Hinged Twist Lock - Wire Routing Device

Name: 37 Series Hinged Twist Lock - Wire Routing Device
Brand: All Electronics Hardware
SKU: 03W-6d0108
Price: 29.99 USD
Availability: OutOfStock

SKU:03W-6d0108

Versatile hinged twist lock for wire routing, featuring durable Nylon 66 construction. Packaged in 500/bag for convenient use.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

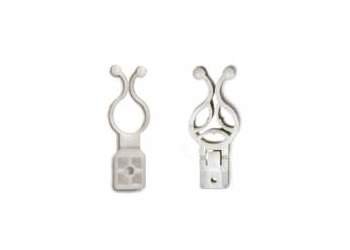

The 37 Series Hinged Twist Lock is a versatile wire routing device featuring a hinged screw mount design for easy installation and removal. Crafted from durable UL94V-2 rated Nylon 66 material, this twist lock offers flexibility and reusability. With dimensions of ID1: .190 inches, ID2: .750 inches, L1: .750 inches, L2: 2.60 inches, T: .08 inches, and Screw Size: #8, it is ideal for securing wires in place with precision. Packaged in sets of 500 bags, this twist lock ensures efficient wire management in various applications, meeting the demands of both consumer and institutional users.

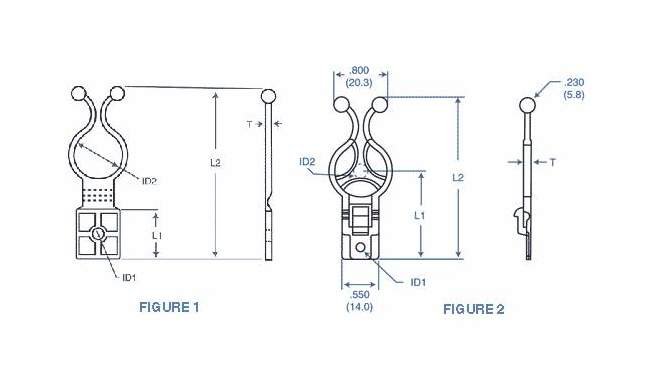

Product Specifications

Specifications Dim Id1

.190 (4.8) inches (mm)

Specifications Dim Id2

.750 (19.1) inches (mm)

Specifications Dim L1

.750 (19.1) inches (mm)

Specifications Dim L2

2.60 (66.1) inches (mm)

Specifications Dim T

.08 (2.0) inches (mm)

Specifications Fig No

Specifications Screw Size

#8 (M4)

37 Series Hinged Twist Lock - Wire Routing Device
