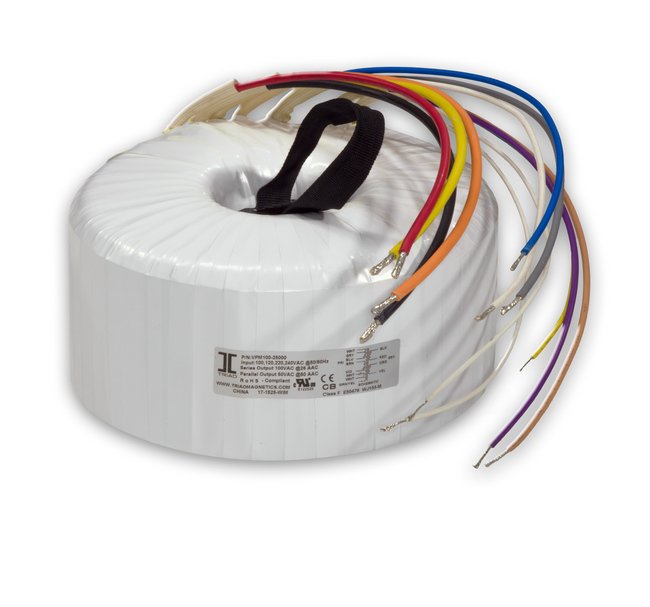

• 3750 VA Power VPM Series Medical Toroidal Transformer - Image 1
  • 3750 VA Power VPM Series Medical Toroidal Transformer - Image 2
  • 3750 VA Power VPM Series Medical Toroidal Transformer - Image 3
1 3
Triad Magnetics →

3750 VA Power VPM Series Medical Toroidal Transformer

3750 VA Power VPM Series Medical Toroidal Transformer

POW-756a23

Enhance medical equipment performance with the 3750 VA Power VPM Toroidal Transformer. Class F insulation, dual secondary windings, and low leakage current ensure reliable and safe power supply.

$499.99
$499.99
Sale

Initiate Order

3750 VA Power VPM Series Medical Toroidal Transformer

3750 VA Power VPM Series Medical Toroidal Transformer

$499.99

Quantity: 1

Claim Your Seller Account

3750 VA Power VPM Series Medical Toroidal Transformer

3750 VA Power VPM Series Medical Toroidal Transformer

$499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 3750 VA Power VPM Series Toroidal Medical Transformer is designed for critical medical applications, offering primary voltage options of 208 or 240 VAC at 50/60 Hz. With dual secondary windings enabling parallel or series connection, it ensures reliable power supply. Featuring Class F insulation, 4 KV dielectric isolation, low leakage current, and low stray fields, this transformer guarantees safety and efficiency. Its compact design with an outside diameter of 254mm and weight of 30kg makes it ideal for medical equipment integration.

Product Specifications

Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
3750 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
150 mm
Specifications Nominal Primary Voltage
208 V | 240 V
Specifications Nominal Secondary Voltage
120 V | 240 V
Specifications Outside Diameter
254 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
3750 V·A
Specifications Secondary Voltage In Parallel
120 V at 31.20 A
Specifications Secondary Voltage In Series
240 V CT at 15.60 A
Specifications Regulation
1.4 %
Specifications Temperature Rise
50 ºC
Specifications Weight
30 kg
