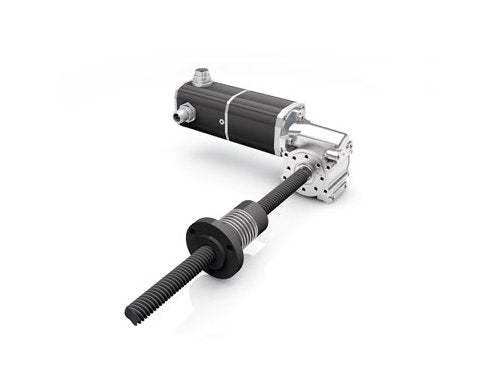

385N Spindle Motor with Brushless DC Motors

Name: 385N Spindle Motor with Brushless DC Motors
Brand: Dunkermotoren
SKU: SPI-e8f60d
Price: 549.99 USD
Availability: OutOfStock

SKU:SPI-e8f60d

High-efficiency brushless DC spindle motor for precision applications. Maintenance-free with integrated feedback and multiple interfaces.

$549.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 385 Newton (N) Nominal Force Spindle Motor is a high-efficiency linear spindle gearbox motor designed for precision and reliability. Featuring brushless DC motors, this maintenance-free motor offers precise positioning, low noise, and self-locking ratios, ideal for applications requiring continuous peak force up to 650N. With integrated feedback and various interfaces, including IO Mode and CANopen version, this motor ensures easy configuration of up to 14 positions. It meets industry standards like European Conformity (CE) and offers serveral BUS interfaces for enhanced connectivity.

Product Specifications

Additional Information Additional Information

High efficiencyEasy configuration of max. 14 positions (PI motor)Serveral BUS interfaces available

Features Features

IO ModeCANopen version availableService interfaceForce modePrecise positioningMaintenance freeLow noiseSelf-locking ratios availableDigital inputsDigital outputsAnalog inputsFeedback integratedOscilloscope software availableCondition monitoringProgrammableVibration resistance

Technical Specs Brands

Dunkermotoren

Technical Specs Continous Peak Force

650 N

Technical Specs Feedback Integrated

1024 cycles/rev | 2000 cycles/rev

Technical Specs Gearbox Reduction

8 i

Technical Specs Gear Type

LSG 13 | Worm Gearboxes (SG 62)

Technical Specs Industry Standardscertifications

European Conformity (CE) | Underwriters Laboratories (UL)

Technical Specs Maximum Stroke

150 mm

Technical Specs Maximum Stroke With Anti Backlash Nut

134 mm

Technical Specs Nominal Current

3.1 A

Technical Specs Nominal Direct Current Dc Voltage

24 V

Technical Specs Nominal Force

385 N

Technical Specs Nominal Speed

68 mm/s

Technical Specs Peak Force

680 N

Technical Specs Peak Force With Anti Backlash Nut

450 N

Technical Specs Permissible Peak Current

5.4 A

Technical Specs Permissible Peak Current With Anti Backlash Nut

3.7 A

Technical Specs Product Availability

Standard Product

Technical Specs Transmission Efficiency

60 %
