38A 3-Pole Contactors with DC Operating Coil
38A 3-Pole Contactors with DC Operating Coil
SKU:DPC-64ce26
High-performance 38A 3-Pole Contactor with DC Operating Coil for diverse applications. Meets multiple safety standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
38A 3-Pole Contactors with DC Operating Coil
$129.99
Quantity: 1
Claim Your Seller Account
38A 3-Pole Contactors with DC Operating Coil
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

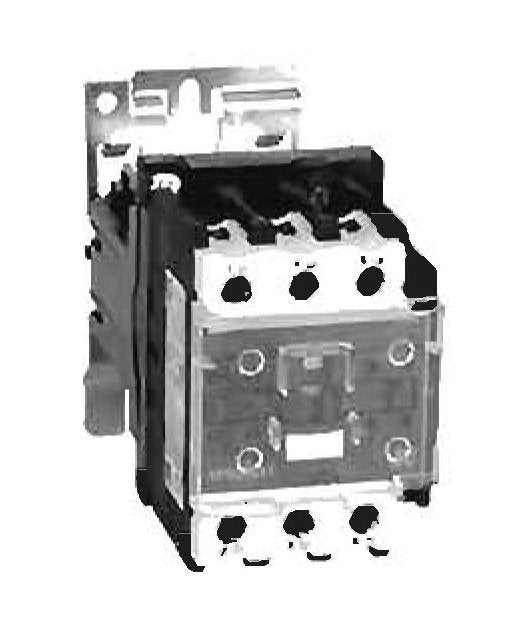

The 38 Ampere Maximum Inductive AC T-Range 3 Pole Contactor with DC Operating Coil by Shamrock Controls is a reliable and efficient solution for various applications. With support for multiple voltages and power ratings, it ensures optimal performance. Meeting BSEN60947, IEC60947, UL, CSA, and more standards, this contactor guarantees safety and quality. Suitable for institutional and government procurement needs, it offers precise control and high durability.
Product Specifications
Accessories Accessories
Item #: TX4-D4-XXSpare Coils Direct Current (DC)Item #: TA9AMOV880EItem Name: Coil SuppressorDescription: Variator (AC/DC) Clip-on mounting for 9-95A ContactorVoltage Ratings: 24-48 V AC/DCItem #: TA9AMOV98DUItem Name: Coil SuppressorDescription: Variator (AC/DC) Clip-on mounting for 9-95A ContactorVoltage Ratings: 110-240 V AC/DCItem #: TA9RC98DEItem Name: Coil SuppressorDescription: RC Circuit (AC )Clip-on mounting for 9-95A ContactorVoltage Ratings: 24-48 V ACItem #: TA9RC98DUItem Name: Coil SuppressorDescription: RC Circuit (AC )Clip-on mounting for 9-95A ContactorVoltage Ratings: 110-240 V ACItem #: TA9RC98DNItem Name: Coil SuppressorDescription: RC Circuit (AC )Clip-on mounting for 9-95A ContactorVoltage Ratings: 380-440 V AC
Control Circuit Characteristics Average Consumption At 20 Degree
11 V·A
Control Circuit Characteristics Average Operating Time At Rated
8 to 14 ms
Control Circuit Characteristics Dropout Temperature 0 55 Degree
0.1 to 0.25 Uc
Control Circuit Characteristics Maximum Operating Rate At Ambien
3600 cycles
Control Circuit Characteristics Mechanical Life Rated Control Ci
25 V
Control Circuit Characteristics Operational Control Voltage For
0.7 to 1.25 Uc
Control Circuit Characteristics Rated Control Circuit Voltage
12 to 660 V

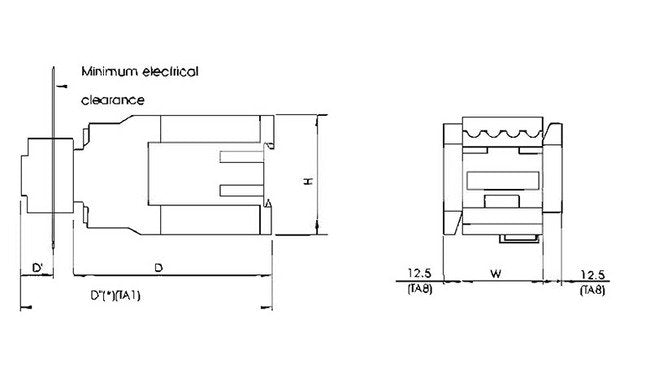

Dimensions Depth
135 mm
Dimensions Dimension C
135 mm
Dimensions Dimension D Ta1
168 mm
Dimensions Dimension G
40 mm
Dimensions Height
84 mm
Dimensions Minimum Electrical Clearance D
10 mm
Dimensions Width
56 mm
Integral Auxillary Contact Characteristics Rated Operational Vol
0 to 660 V
Integral Auxillary Contact Characteristics Rated Thermal Current
10 A
Pole Characteristics Ambient Air Storage Temperature
-60 to +80 ºC
Pole Characteristics Approvals
Canadian Standards Association (CSA) | Underwriters' Laboratories (UL)
Pole Characteristics Around The Device Operating Temperature
-5 to +55 ºC
Pole Characteristics Around The Device Permissible Temperature
-40 to +70 ºC
Pole Characteristics Auxiliary Contacts Normally Open No
1
Pole Characteristics Average Impedance Per Pole At 50 Hertz Hz F
2 mΩ
Pole Characteristics Maximum Power Rating At Single Phase 120 Vo
2 hp
Pole Characteristics Maximum Power Rating At Single Phase 230 Vo
5 hp
Pole Characteristics Maximum Power Rating At Three Phase 200 Vol
10 hp
Pole Characteristics Maximum Power Rating At Three Phase 230 Vol
10 hp
Pole Characteristics Maximum Power Rating At Three Phase 480 Vol
20 hp
Pole Characteristics Maximum Power Rating At Three Phase 600 Vol
25 hp
Pole Characteristics Number Of Power Poles
3
Pole Characteristics Power Dissipation Per Pole For Ac 3 The Abo
2 W
Pole Characteristics Rated Breaking Capacity 220 To 440 Volt V
550 A
Pole Characteristics Rated Breaking Capacity 650 To 690 Volt V V
180 A
Pole Characteristics Rated Breaking Capacity At 500 Voltage V
450 A
Pole Characteristics Rated Insulation Voltage
1000 V
Pole Characteristics Rated Making Capacity Conforming To Interna
550 A
