39 Series Locking Board Support
39 Series Locking Board Support
SKU:01C-7228b1
Secure PCB mounting support for .062 PCB thickness & .04-.062 chassis thickness. Durable Nylon 66 material. RoHS compliant. Pack of 1000.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
39 Series Locking Board Support
$149.99
Quantity: 1
Claim Your Seller Account
39 Series Locking Board Support
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

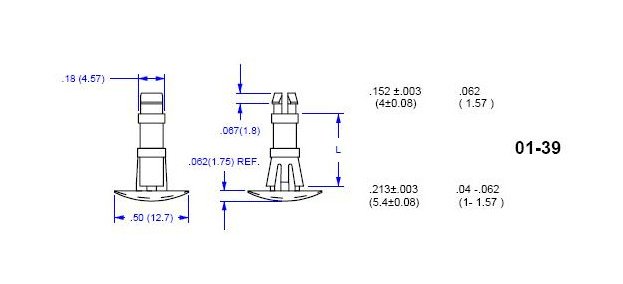

The 39 Series Locking Board Support is a premium product designed for secure PCB mounting in various applications. This support is engineered to accommodate .062 PCB thickness and .04 to .062 chassis thickness, with a .156 PCB hole and .213 chassis hole for precise installations. Made of durable Nylon 66 UL94V-2 material (UL94V-0 available), this support ensures reliable performance in a temperature range of -40 to 185 F (-40 to 85 C). Each pack contains 1000 pieces, offering cost-effective solutions for circuit board support needs. Trust the 39 Series for superior quality and compliance with RoHS standards.
Product Specifications
Specifications L 015
1.00 (25.4) inches (mm)
