39 Series PCB Support - .156 Board Hole x .213 Chassis Hole
39 Series PCB Support - .156 Board Hole x .213 Chassis Hole
SKU:01C-55b290
Reliable 39 Series PCB Support for secure board installations. Nylon 66 material, RoHS compliant. Packaged in 1000 units.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
39 Series PCB Support - .156 Board Hole x .213 Chassis Hole
$49.99
Quantity: 1
Claim Your Seller Account
39 Series PCB Support - .156 Board Hole x .213 Chassis Hole
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

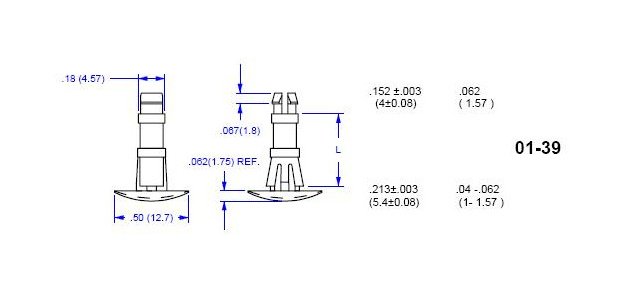

The 39 Series PCB Support offers reliable reverse locking board support for PCBs with a thickness of .062 and chassis thickness ranging from .04 to .062. With a .156 PCB hole and a .213 chassis hole, this support is designed for secure installations. Made of Nylon 66 UL94V-2 material (UL94V-0 available), it meets RoHS compliance and offers a temperature range of -40 to 185°F (-40 to 85°C). Each pack contains 1000 units, ensuring efficient stock management and installation ease.
Product Specifications
Specifications L 015
.630 (16) inches (mm)
