3AL Series Vacuum Pump 3AL2041 - Environmentally Friendly Oil-Free Design
3AL Series Vacuum Pump 3AL2041 - Environmentally Friendly Oil-Free Design
SKU:VAC-43e176
Environmentally friendly and maintenance-free vacuum pump with food-grade configuration and maximum vacuum of 28.5 Hg.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
3AL Series Vacuum Pump 3AL2041 - Environmentally Friendly Oil-Free Design
$1,899.99
Quantity: 1
Claim Your Seller Account
3AL Series Vacuum Pump 3AL2041 - Environmentally Friendly Oil-Free Design
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

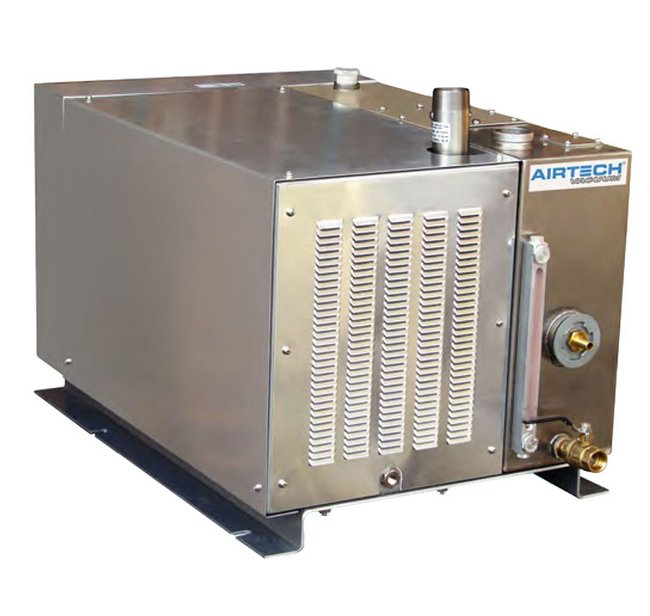

The 3AL Series Vacuum Pump 3AL2041 features an environmentally friendly oil-free design, making it ideal for both consumer and institutional buyers. This self-contained and maintenance-free pump boasts a durable all-steel shell with a stainless reservoir for enhanced robustness. It offers a food-grade configuration with external components in 304 Stainless steel, ensuring compliance with industry standards. With a maximum vacuum of 28.5 Hg, compact and quiet operation, and easy installation, this pump is a reliable solution for various applications. All stainless-steel units are also available for added versatility.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Note 0
All Stainless Steel units also available.
Performance Electrical Frequency
60 Hz
Performance Maximum Current
3.4 A | 4.9 A
Performance Rated Power
1.5 hp
Performance Sound Level
66 dB(A)
Performance Speed
3450 rpm
Performance Voltage Range
208-230 V | 460 V
Performance Weight
105 lb

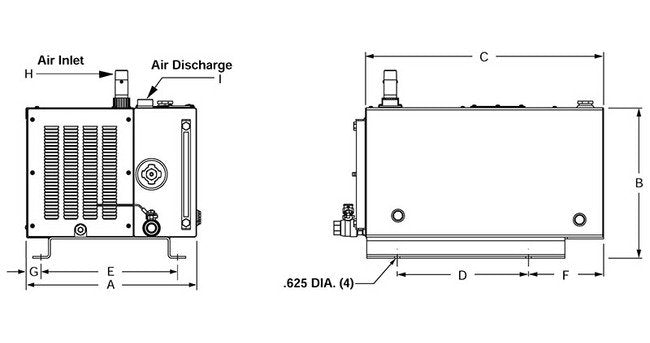

Specifications Air Discharge I Fnpt
1.0 in
Specifications Air Inlet H Mnpt
1.0 in
Specifications Dimension A
17.6 in
Specifications Dimension B
15.5 in
Specifications Dimension C
24.6 in
Specifications Dimension D
13.6 in
Specifications Dimension E
14.1 in
Specifications Dimension F
7.8 in
Specifications Dimension G
1.5 in

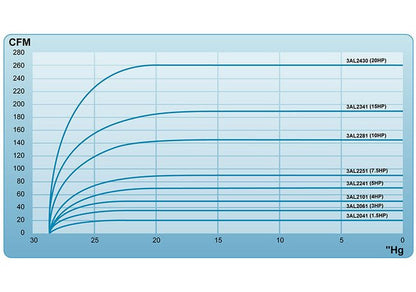

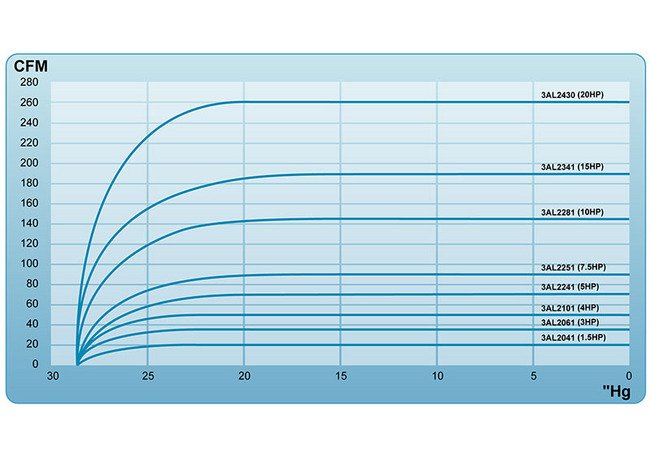

Specifications Flow Rate
18 ft³/min
