The 3AL Series Vacuum Pump 3AL2101: Environmentally friendly, maintenance-free, and durable. Ideal for various applications.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
3AL Series Vacuum Pump 3AL2101 - Environmentally Friendly Oil-Free Design
$2,899.99
Quantity: 1
Claim Your Seller Account
3AL Series Vacuum Pump 3AL2101 - Environmentally Friendly Oil-Free Design
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

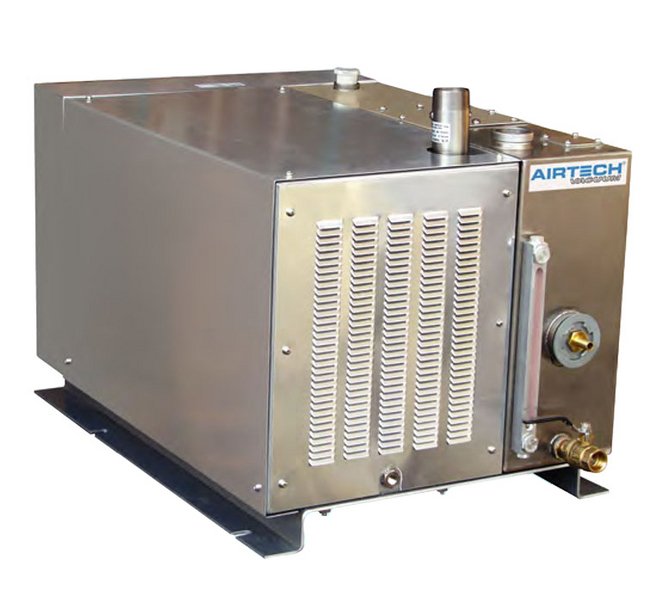

The 3AL Series Vacuum Pump 3AL2101 is a top-of-the-line solution for both consumer and institutional buyers looking for an environmentally friendly, oil-free design. This self-contained and maintenance-free pump features a durable all-steel shell with a stainless reservoir. It boasts a food-grade configuration with external components in 304 stainless steel, ensuring maximum durability and cleanliness. With a compact, quiet operation and easy installation, this vacuum pump delivers a maximum vacuum of 28.5 Hg. Available in all stainless-steel units, this pump is a reliable and efficient choice for various applications.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Note 0
All Stainless Steel units also available.
Performance Electrical Frequency
60 Hz
Performance Maximum Current
5.9 A | 12.9 A
Performance Rated Power
4 hp
Performance Sound Level
74 dB(A)
Performance Speed
1750 rpm
Performance Voltage Range
208-230 V | 460 V
Performance Weight
190 lb
Specifications Air Discharge I Fnpt
1.5 in
Specifications Air Inlet H Mnpt
1.5 in

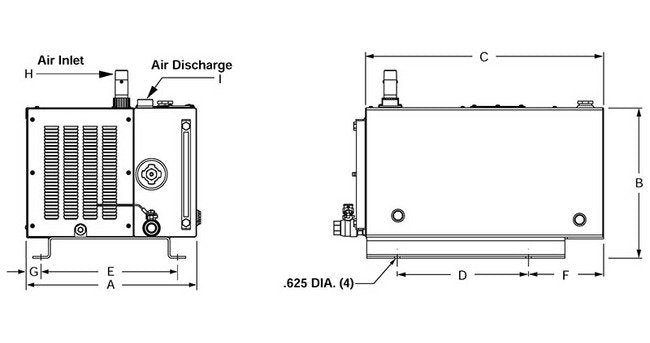

Specifications Dimension A
21.0 in
Specifications Dimension B
18.8 in
Specifications Dimension C
30.0 in
Specifications Dimension D
17.8 in
Specifications Dimension E
19.5 in
Specifications Dimension F
9.0 in
Specifications Dimension G
0.8 in

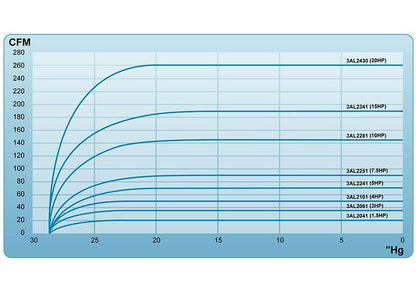

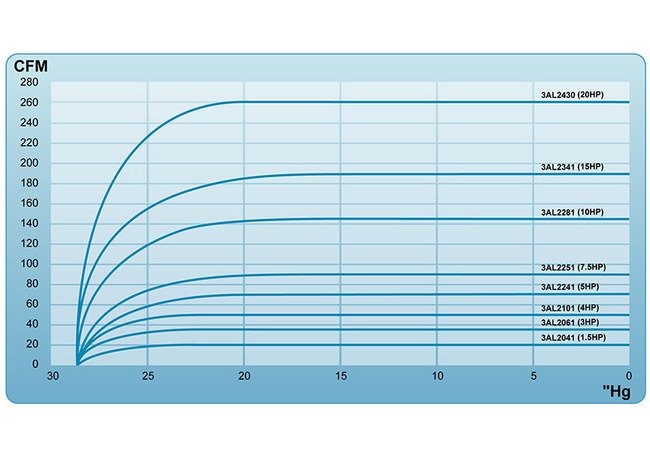

Specifications Flow Rate
48 ft³/min
