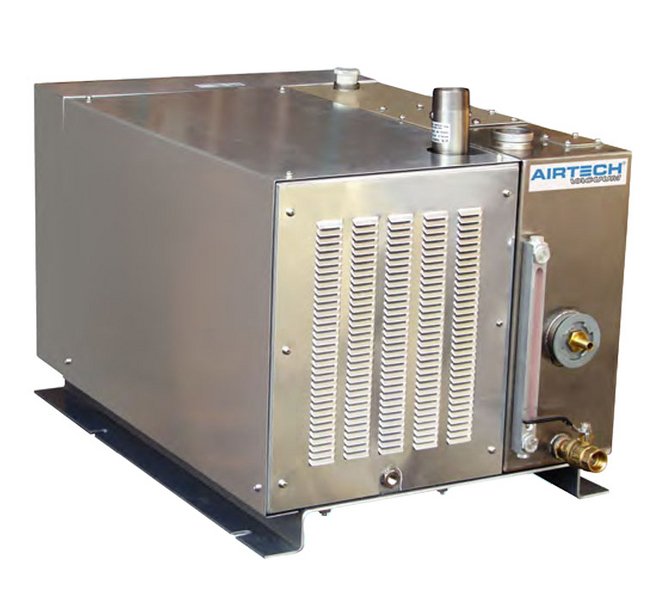

3AL Series Vacuum Pump 3AL2341 - Oil-Free Stainless Steel Design
3AL Series Vacuum Pump 3AL2341 - Oil-Free Stainless Steel Design
SKU:VAC-b08e22
Environmentally friendly, maintenance-free vacuum pump with durable stainless steel construction.
Regular price
$7,899.99
Regular price
Sale price
$7,899.99
Unit price
per
Initiate Order
3AL Series Vacuum Pump 3AL2341 - Oil-Free Stainless Steel Design
$7,899.99
Quantity: 1
Claim Your Seller Account
3AL Series Vacuum Pump 3AL2341 - Oil-Free Stainless Steel Design
$7,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3AL Series Vacuum Pump 3AL2341 features an environmentally friendly oil-free design, making it ideal for institutions seeking maintenance-free and durable pumping solutions. With a steel shell and stainless reservoir, this pump offers superior durability. Its compact, quiet operation and food-grade configuration with 304 Stainless components ensure reliable and efficient performance. Achieve a maximum vacuum of 28.5 Hg with the option for all-stainless steel units, providing versatility and longevity.
Product Specifications
Features 0
Oil Free Self Contained Maintenance Free All steel shell with stainless reservoir for additional durability Food Grade Configuration with all external components in 304 Stainless available Compact Quiet Operation Easy to install Maximum vacuum of 28.5 Hg
Financing Approve Payments
Finance with Approve Payments
Note 0
All Stainless Steel units also available.
Performance Electrical Frequency
60 Hz
Performance Maximum Current
25 A | 46.5 A
Performance Rated Power
15 hp
Performance Sound Level
76 dB(A)
Performance Speed
1750 rpm
Performance Voltage Range
208-230 V | 460 V
Performance Weight
580 lb
Specifications Air Discharge I Fnpt
2.0 in
Specifications Air Inlet H Mnpt
2.0 in
Specifications Dimension A
29.7 in
Specifications Dimension B
27.2 in
Specifications Dimension C
43.1 in
Specifications Dimension D
29.7 in
Specifications Dimension E
28.2 in
Specifications Dimension F
10.1 in
Specifications Dimension G
0.8 in

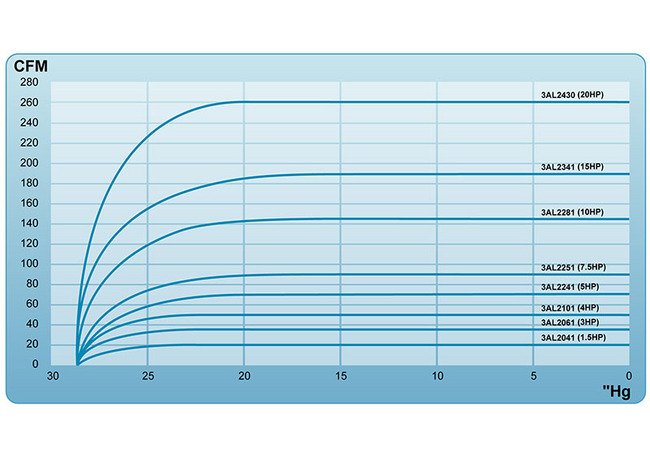

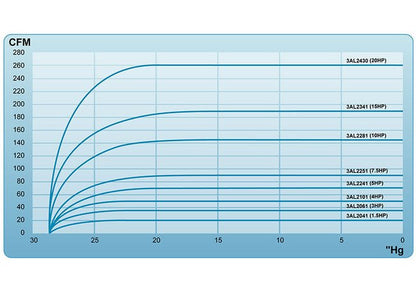

Specifications Flow Rate
187 ft³/min
