3AL Series Vacuum Pump 3AL2430 - Oil-Free, Self-Contained, Food-Grade, Quiet Operation
3AL Series Vacuum Pump 3AL2430 - Oil-Free, Self-Contained, Food-Grade, Quiet Operation
SKU:VAC-4f367e
Oil-Free, Self-Contained Vacuum Pump with Food-Grade Design for Reliable Performance
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
3AL Series Vacuum Pump 3AL2430 - Oil-Free, Self-Contained, Food-Grade, Quiet Operation
$5,499.99
Quantity: 1
Claim Your Seller Account
3AL Series Vacuum Pump 3AL2430 - Oil-Free, Self-Contained, Food-Grade, Quiet Operation
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

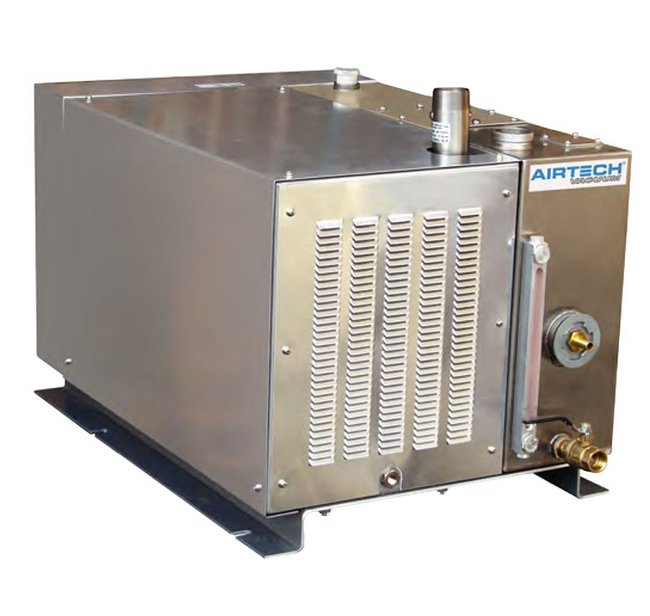

The 3AL Series Vacuum Pump 3AL2430 offers an environmentally friendly oil-free design, making it maintenance-free and self-contained. Featuring a durable all-steel shell with a stainless reservoir, this pump is ideal for food-grade applications. With a maximum vacuum of 28.5 Hg, compact design, and quiet operation, it is easy to install and ensures reliable performance. Additionally, all stainless-steel units are available for enhanced durability and longevity.
Product Specifications
Features 0
Oil Free Self Contained Maintenance Free All steel shell with stainless reservoir for additional durability Food Grade Configuration with all external components in 304 Stainless available Compact Quiet Operation Easy to install Maximum vacuum of 28.5 Hg
Financing Approve Payments
Finance with Approve Payments
Note 0
All Stainless Steel units also available.
Performance Electrical Frequency
60 Hz
Performance Maximum Current
39 A | 68 A
Performance Rated Power
20 hp
Performance Sound Level
76 dB(A)
Performance Speed
1750 rpm
Performance Voltage Range
208-230 V | 460 V
Performance Weight
620 lb
Specifications Air Discharge I Fnpt
2.0 in
Specifications Air Inlet H Mnpt
2.0 in

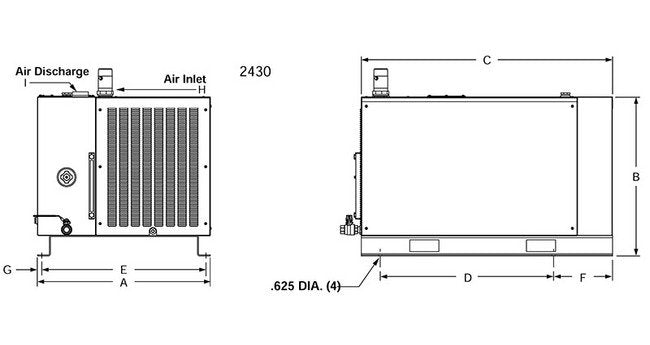

Specifications Dimension A
29.7 in
Specifications Dimension B
27.2 in
Specifications Dimension C
43.1 in
Specifications Dimension D
29.7 in
Specifications Dimension E
28.2 in
Specifications Dimension F
10.1 in
Specifications Dimension G
0.8 in

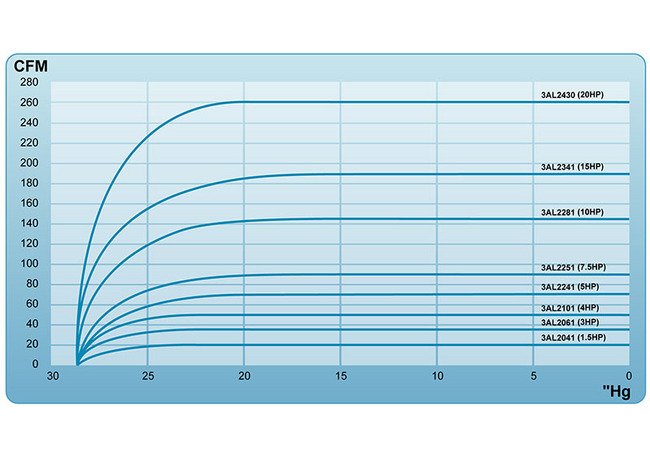

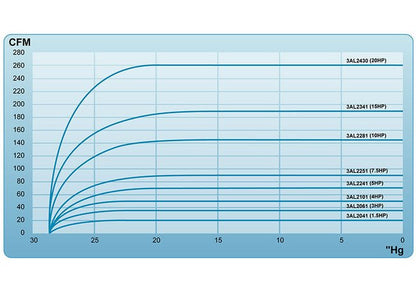

Specifications Flow Rate
262 ft³/min
