3CB150 Single Flange CB Elements
3CB150 Single Flange CB Elements
SKU:CLU-8dca97
High-performance 3CB150 Single Flange CB Elements for industrial applications. Durable, reliable, and meeting industry standards.
Regular price
$289.00
Regular price
Sale price
$289.00
Unit price
per
Initiate Order
3CB150 Single Flange CB Elements
$289.00
Quantity: 1
Claim Your Seller Account
3CB150 Single Flange CB Elements
$289.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3CB150 Single Flange CB Elements are precision-engineered components designed for high-performance industrial applications. With a torque rating of 360 lb·in and a maximum speed of 2000 rpm, these elements ensure reliable operation under demanding conditions. Featuring a friction area of 14 in² and a sturdy construction, they deliver exceptional durability and consistent performance. The 3CB150 elements meet rigorous industry standards for quality and reliability, making them ideal for both consumer and institutional procurement needs.

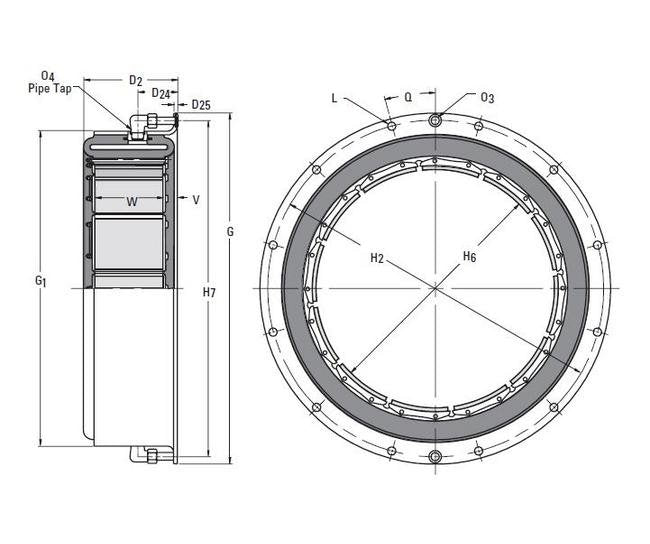

Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
1/8-27
Specifications Air Tube Cavity
7 in³ | 0.12 dm³
Specifications Angle Q
22.500 º
Specifications Bolt Hole Size L
0.25 in | 6 mm
Specifications Centrifugal Loss Constant Cs
0.10 E-06 bar/rpm2 | 1.5 E-06 psi/rpm2
Specifications Dimension D2
2.16 in | 55 mm
Specifications Dimension D24
1.18 in | 30 mm
Specifications Dimension D25
0.10 in | 2 mm
Specifications Dimension G
6.299 in | 160 mm
Specifications Dimension G1
4.86 in | 123 mm
Specifications Dimension H2
5.748 in | 146 mm
Specifications Dimension H6
3.15 in | 80 mm
Specifications Dimension H7
5.75 in | 146 mm
Specifications Dimension O3
0.28 in | 7 mm
Specifications Dimension V
0.35 in | 9 mm
Specifications Friction Area
14 in² | 90.3 cm²
Specifications Friction Shoe Width W
1.50 in | 38 mm
Specifications Inertia
0.1 lb·ft² | 0 kg·m²
Specifications Maximum Speed
2000 rpm
Specifications Minimum Drum Diameter
2.90 in | 74 mm
Specifications New Friction Lining Thickness
0.20 in | 5 mm
Specifications Number Of Friction Shoes
6
Specifications Number Of Mounting Holes
8
Specifications Size
3CB150
Specifications Torque Rating 75 Psi55 Bar
360 lb·in | 40.7 Nm
Specifications Weight
1.8 lb | 0.8 kg
Specifications Worn Friction Lining Thickness
0.04 in | 1 mm
