3FLX Series 3" PTFE Flanged Heaters
3FLX Series 3" PTFE Flanged Heaters
SKU:HEA-95656d
Experience superior chemical resistance & outstanding performance with our 3FLX Series 3" PTFE Flanged Heaters.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
3FLX Series 3" PTFE Flanged Heaters
$549.99
Quantity: 1
Claim Your Seller Account
3FLX Series 3" PTFE Flanged Heaters
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

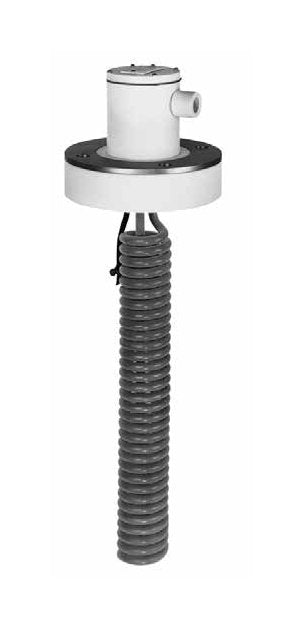

The 3FLX Series 3" 150 LB. Style Single Element Fluoropolymer (PTFE) Flanged Heaters are designed for superior chemical resistance, featuring heavy wall fluoropolymer (PTFE) covered stainless steel elements. These heaters are CE compliant and come with safety features like a thermal protector and grounded construction. With a low watt density design ensuring a long service life, corrosion-resistant head, and various options available, they are ideal for institutional and industrial use.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212°F (100°C).RUGGED CONSTRUCTION: Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and reduces the need for gas purge systems. Guaranteed 100% pinhole free.OUTSTANDING PERFORMANCE: Low watt density design (10 watts/square inch (1.5 w/cm2) uses minimal space and ensure long service life.CORROSION RESISTANT HEAD: Polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Resettable P2 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: CE compliant (except 600 volts).SIZES: 1,000 watts to 18,000 watts.VOLTAGES: 120 to 600 volts. 3FLX single phase only. 6FLX single or three phase.OPTIONS AVAILABLE (consult factory):P8: Type-J thermocouple for solutions up to 210°F (99°C).Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions and technical acids.Temperature and level controls sized to match the heater (sold separately).
Note Note
Gasket and bolts are not provided. Intended for horizontal installation only.
Specifications Certifications
CE
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Number Of Elements
1
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable Fuse (Type-J TC) thermal protector: P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector: P8: for solutions up to 210°F.
Specifications Overall Length
16 " | 406 mm
Specifications Phase
Single
Specifications Shipping Weight
23.0 Pound
Specifications Volts
240 V
Specifications Watts
2000 W
Specifications Weight
23.0 lbs | 10.4 kg
