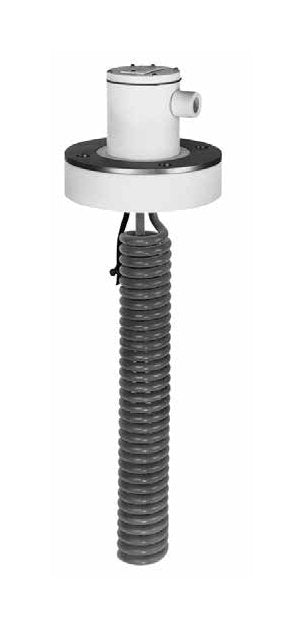

3FLX Series Fluoropolymer (PTFE) Flanged Heater
3FLX Series Fluoropolymer (PTFE) Flanged Heater
SKU:HEA-8afb1e
High-performance 6000W 240V fluoropolymer (PTFE) flanged heater for industrial use with superior chemical resistance and built-in thermal protector. CE compliant.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
3FLX Series Fluoropolymer (PTFE) Flanged Heater
$799.99
Quantity: 1
Claim Your Seller Account
3FLX Series Fluoropolymer (PTFE) Flanged Heater
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3FLX Series 3" 150 LB. Style Single Element Fluoropolymer (PTFE) Flanged Heater is a top-of-the-line solution designed for optimal performance in industrial settings. With 6000W power and 240V voltage, this heater offers superior chemical resistance, rugged construction, and outstanding performance. Certified CE compliant, it features a corrosion-resistant head, safety features like a built-in thermal protector, and a non-floating construction. From 1000 watts to 18000 watts and voltages ranging from 120V to 600V, this heater is versatile and efficient. Ideal for solutions up to 212°F, it ensures a long service life and minimal maintenance requirements. Note: Gasket and bolts not provided; intended for horizontal installation.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212°F (100°C).RUGGED CONSTRUCTION: Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and reduces the need for gas purge systems. Guaranteed 100% pinhole free.OUTSTANDING PERFORMANCE: Low watt density design (10 watts/square inch (1.5 w/cm2) uses minimal space and ensure long service life.CORROSION RESISTANT HEAD: Polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Resettable P2 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: CE compliant (except 600 volts).SIZES: 1,000 watts to 18,000 watts.VOLTAGES: 120 to 600 volts. 3FLX single phase only. 6FLX single or three phase.OPTIONS AVAILABLE (consult factory):P8: Type-J thermocouple for solutions up to 210°F (99°C).Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions and technical acids.Temperature and level controls sized to match the heater (sold separately).
Note Note
Gasket and bolts are not provided. Intended for horizontal installation only.
Specifications Certifications
CE
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer
Specifications Number Of Elements
1
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable Fuse (Type-J TC) thermal protector: P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector: P8: for solutions up to 210°F.
Specifications Overall Length
35 " | 889 mm
Specifications Phase
Single
Specifications Shipping Weight
35.0 Pound
Specifications Volts
240 V
Specifications Watts
6000 W
Specifications Weight
35.0 lbs | 15.9 kg
