3H Series Pipe & Tube Cut-Off Machine - Continental
3H Series Pipe & Tube Cut-Off Machine - Continental
SKU:PIP-2ce4fe
Precision cutting machine for tubes & pipes. Manual operation, 1/4-5-1/2" OD, 3/8" thickness. Available with Mist Lubrication System.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
3H Series Pipe & Tube Cut-Off Machine - Continental
$7,999.99
Quantity: 1
Claim Your Seller Account
3H Series Pipe & Tube Cut-Off Machine - Continental
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

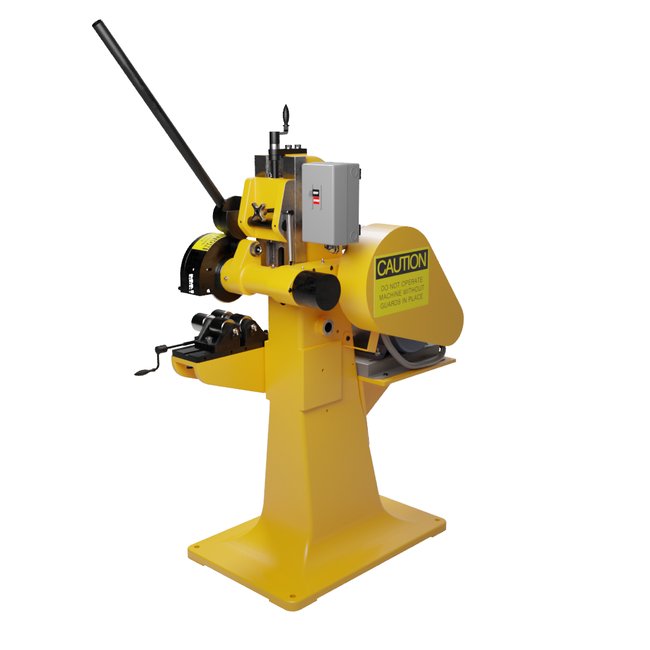

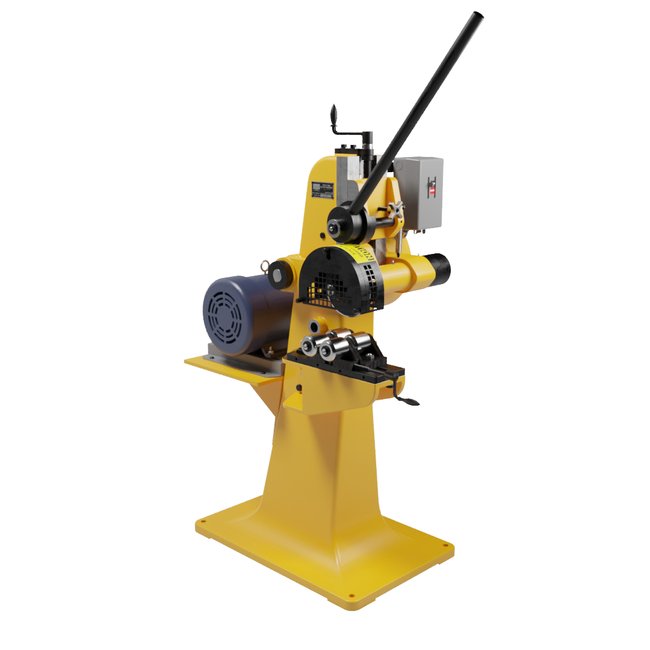

The 3H Series Pipe & Tube Cut-Off Machine by Continental is a manual machine designed for precise cutting of tubes with an outside diameter ranging from 1/4 to 5-1/2 inches and wall thickness up to 3/8 inches. With dimensions of 22" W x 35" D x 70" H and a weight of 940 lbs, this machine operates at 230V or 460V AC voltage, 60 Hz, and 3-phase power with motors ranging from 2 hp to 5 hp. The machine can be equipped with the optional Mist Lubrication System for improved blade life and reduced cutting times.
Product Specifications
Accessories Accessories
Item# - Model 310Item Name - Mist Lubrication SystemFeatures - Near-dry mist lube unit sprays minute quantities of lubrication on the cut-off blade to improve blade life and reduce cut times.100% natural and biodegradable lubricantAvailable as a retrofit to your existing Continental Cut-Off Machine!
Specifications Alternating Current Ac Voltage
230 V | 460 V
Specifications Depth
35 in
Specifications Frequency
60 Hz
Specifications Height
70 in
Specifications Motor Power
2 hp | 3 hp | 5 hp
Specifications Phase
3
Specifications Tube Outside Diameter Od
1/4 to 5-1/2 in
Specifications Type
Manual
Specifications Wall Thickness
Up to 3/8 in
Specifications Weight
940 lb
Specifications Width
22 in
